Product Name:Trapezoidal Pipe Tile

  • Product Category:
    • Product Details:
      Chemshun abrasion resistant lining for pipe is of wear resistance , impact resisting, easy operation, etc.
    • E-Mail:

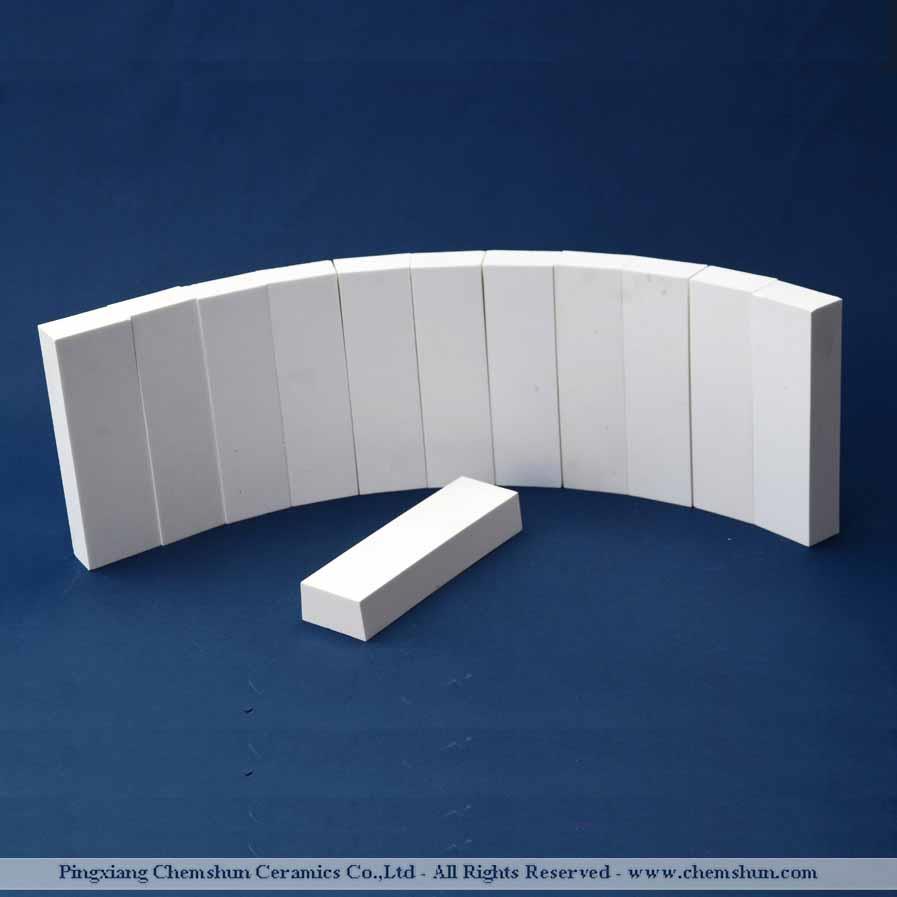

    Trapezoidal Pipe Tile

    Chemshun ceramic trapezoidal pipe tile is of wear resistance, impact resisting, easy operation, etc.


    Description :

    Curved pipe tile liner, trapezoidal pipe tile, inter-lock pipe tile linings are produced by Chemshun Ceramics for ceramic lined equipment. They can suit all applications no matter different degree, radian, length or inclined plane. Ceramic pipe tile liner is much flexible and cost effective used in pipeline.


    Product characters

      1)  Compared with integrated pipe liner, chemshun ceramic pipe tile liner is more cost effective in purchasing cost

      2)  Easy to be installed in equipment

      3)  Easy to repair when any piece ceramics damaged

      4)  Any size can be combined freely compared with integrated pipe .


    Chemshun Size available (Length*width*thickness ) :

    150*100/95.63*50mm,

    157*100*48/35 mm,

    80*23.9/22.1*20 mm

    80*27.4/25.73*8mm

     150*100/95.34*50mm

      80*25.5/22.7*10mm
     80*28.5/27.3*10mm
     125/62.2*102*50mm
     80*27.3/25.9*10 mm
     25.4*25.4/24.4*12.7mm
     100*60/59.44*15mm
     150*50/46*25 mm,
     100/68*102/70*50 mm

       97*50/48*15 mm

    Note:  more sizes and customized size acceptable

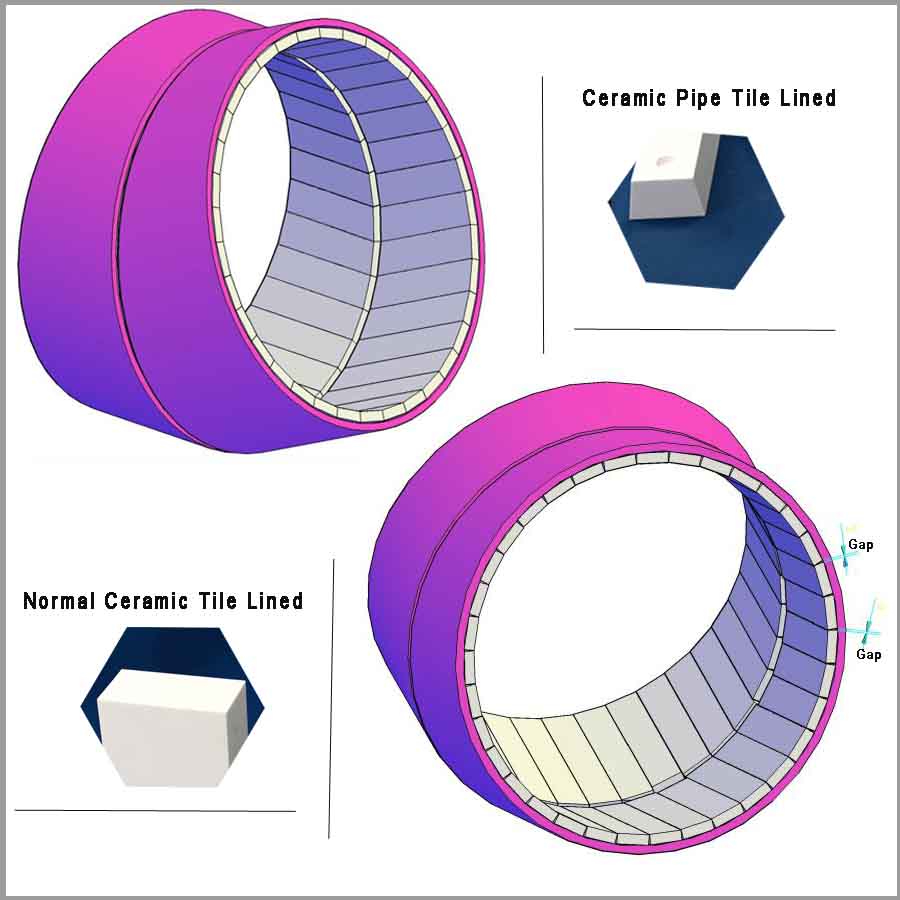

    Difference of pipe tile and standard ceramic tile :

    Abrasion resistant linings lined elbow pipe

    1: Width size diference:

        Taper tile also named trapezoidal tile liner, the up-width and bottom-width is in different size; and standard tile liner is in same width.

    2: Shape difference compsoted:

        Several taper tile liners composited form a circle with angle, but standard ceramic tile composited form a straight line

    3: Application difference :

        Alumina taper pipe linings is specially used for pipe or cyclone, hopper equipment etc.alumina standard tile includeing weldable tile widely used in chute etc.



    Product Technical Data (1:wear resistant ceramic)

    Product PDF Brochure Download
