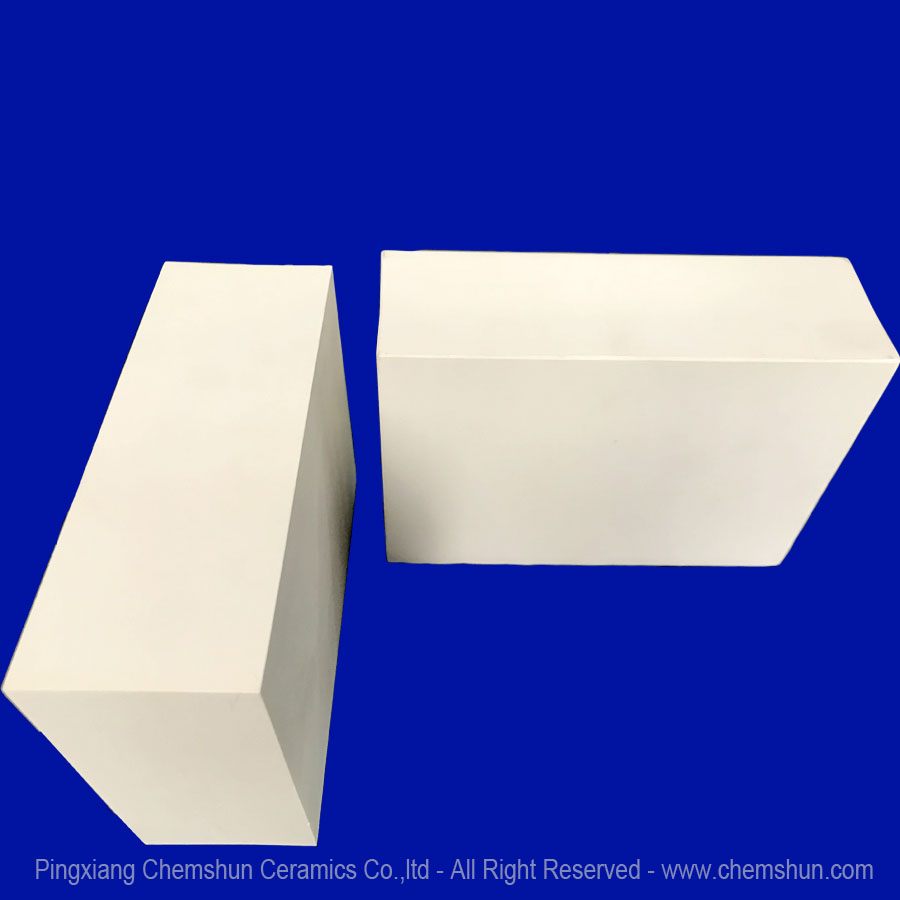

Product Name:ZTA Ceramic Plate

ZTA Ceramic Plate


Zirconia Toughened Alumina Ceramics also named ZTA ceramics, zirconium oxide ceramics, which is white, corrosion resistance, chemical stability,a special combination of aluminum oxide and 10-30% zirconium oxide.Chemshun Ceramics technicians mix high purity alumina with zirconia by the process of transformation toughening,making composite ceramic liner more tougher,harder,wear resistance over alumina alone,and lower cost than zirconia.

>>>Shape and Type of ZTA Ceramics:

Chemshun ZTA ceramics can be produced into ceramic plain type, arc type, cube, cylinder, hex tile etc.Special machinery parts are also customized designed with CAD drawings.

In order to better take advantage of ZTA, we usually vulcanize ZTA to rubber and steel and install bolts on the back of the steel.We called the combination as wear ZTA ceramic rubber liner. Customers can easily install the product on site.


 >>>ZTA Ceramics Advantages :

- Higher strength than alumina

- Lower cost than zirconia

- High corrosion resistance

- High erosion resistance

- High fracture toughness

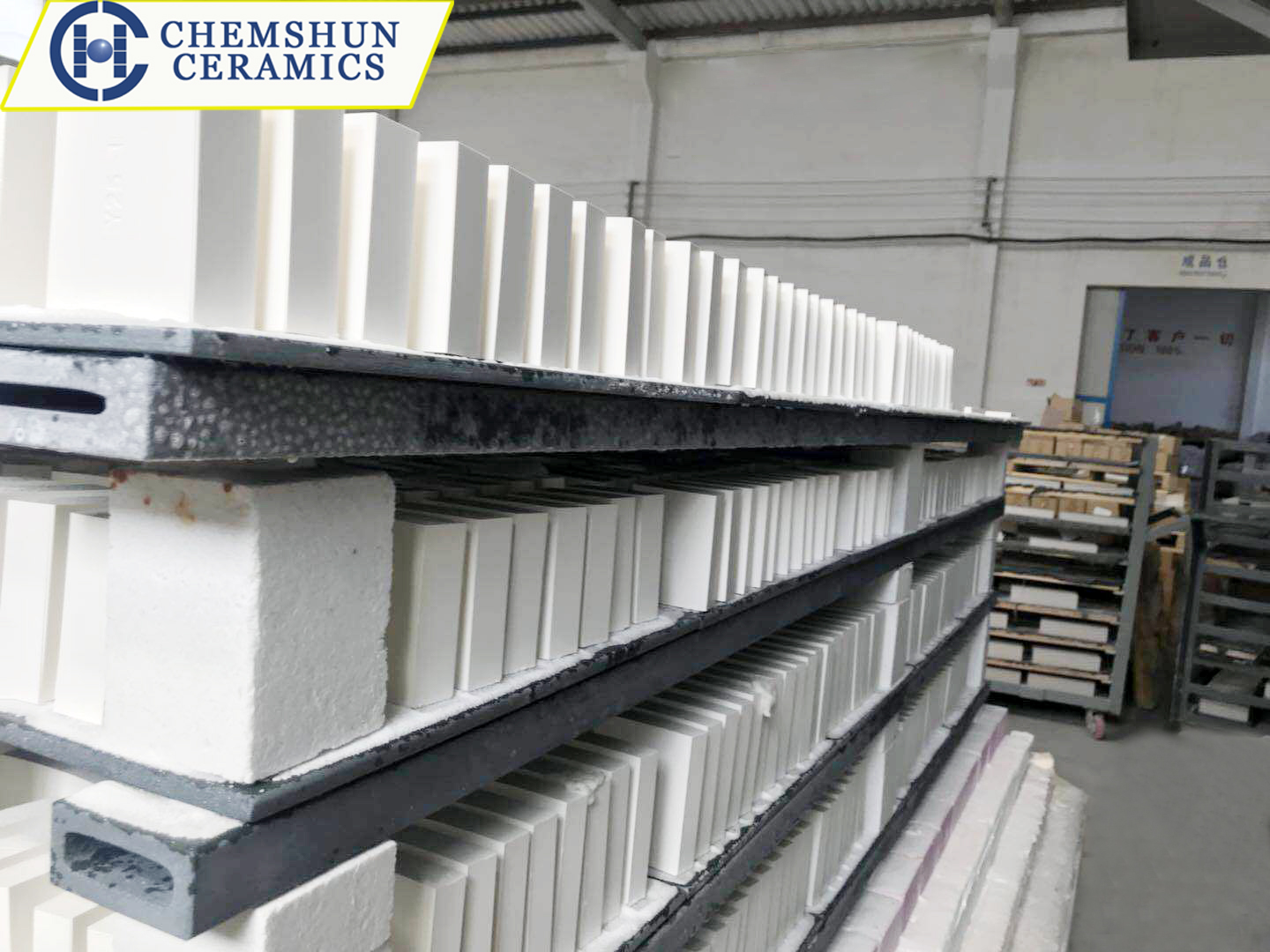

Chemshun Ceramics-zta ceramics production line



chemshun ceramics-zta ceramics production line

>>>Normal ZTA ceramic plate sizes:

Size (mm)
150*100*50
100*100*20



>>>Chemshun produce the ZTA Ceramics (just ceramics), also we accept the order of ZTA Rubber Ceramic Liner (ZTA Ceramics vulcanized into rubber and steel with bolt).

No.

Item

Data

ZTA ceramics property

1

ZrO2

20-25%

2

Al2O3

75-80%

3

Density(g/cm3)

≥4.2

4

Compressive Strength(Mpa)

≥1500

5

Vickers Hardness (HV 10)

≥1300

6

Rockwell hardness (HRA)

≥90

7

Flexural Strength (20ºC, Mpa)

>350

8

Elastic Modulus(Gpa)

320

9

Fracture Toughness KIC (Mpa.m1/2)

≥3.70

Rubber Property

10

Rubber

Natural

11

Tensile strength (Mpa)

>12

12

Tensile Elongation

>400%

13

Hardness (Shore A)

55~65

14

Bond strength of rubber and ceramics (shear modulus, Mpa)

>3.5


Packaging & Shipping

> Delivery: 30-35 working days for 1x20container (20~24ton). If ZTA ceramics is a custom products, the shipping time will add the open mould time.

> Sample: Usually by EMS, DHL, UPS, TNT, FedEx. Anyway you like. Bulk order: Usually by sea.Payment: It can be through T/T, L/C at sight. The specific terms determined according to the quantity of the goods, etc.
 > Your inquiry related to our product & price will be replied within 24 hours.

Service & Support

Once you're interested in any type of Chemshun Ceramics ZTA Ceramics or ZTA Rubber Ceramic Wear Liners, please feel free email or call us or leave message on our account of made-in-china.com. Our sales team will contact with you within 24hours. Meanwhile our technical team will reply your question about the skills and application.

Any more requirment about chemshun other wear resistant ceramics for example Alumina Ceramic Square Mosaic Tile ,  Rubber Ceramic Plate,Wear Ceramic Liner  ,wear resistant ceramic, alumina ceramic rubber wear plate ,Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service.
