Product Name:Zirconia Ceramic Beads

  • Product Category:
    • Product Details:
      Zirconia Grinding Ball features: - High crushing strength and fracture durability superior wear resistance which has no any break under high speed impace - Smooth surface , good sphericity - High density and excellent grinding efficiency for grinding materials down to Nano size - Significant cost and waste reduction
    • E-Mail:

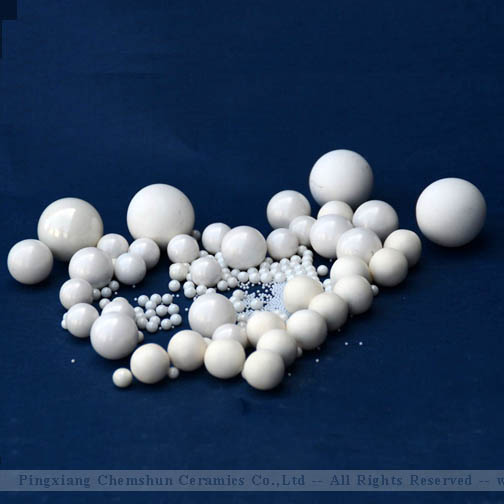

    Zirconia Ceramic Beads

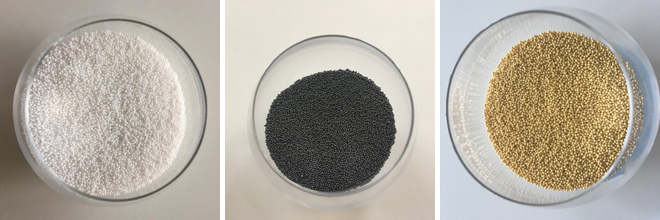

    Chemshun zirconia beads including Zirconium silicate beads, Zirconia toughened alumina beads, Ceria-stabilized zirconia beads, Yttria-stabilized zirconia beads.


    Chemshun zirconia beads, a kind of ceramic grinding media, have features of good quality, no fracture, stable performance, reliable quality and long service life. They're low comprehensive operating cost which can effectively ensure that the abrasive material is not polluted, and maintain the high purity of the abrasive material. The high density of the zirconia ceramic beads can improve the grinding efficiency. And due to the low wear rate of zirconia mill balls, the stability of the grinding process condition can be effectively ensured. The stability and consistency of the quality of the raw material facilitates process control and management.

    Zirconia Beads


    The Benefits of Zirconia Beads:

    - High crushing strength and fracture durability superior wear resistance which has no any break under high speed impace. They can improve the efficience of grinding and no contamination.

    - Smooth surface, good sphericity and low self-loss.

    - High density and excellent grinding efficiency for grinding materials down to Nano size.

    - Significant cost and waste reduction.


    Techinal Date of Zironia Ceramic Beads:

    Properties

    Unit

     SZS
     ZTA

    Ce-TZP

    Y-TZP

    Composition

    Wt%

     50~60% ZrO2

     25~35% Al2O

     80~90% ZrO2

     8~13% Al2O3

    78~80% ZrO2

    20~22% CeO2

    94.6% ZrO2

    5.2% Y2O3

    Specific Density

    G/cm3

     4.0~4.2

      5.1-5.3

    5.95~6.05

    5.95-6.0

    Moh’s Hardness

    Grade

     ≥9

     ≥9

    ≥9

    >9.0

     Vickers hardness

     Hv

     1000~1050

     1350~1450

     1300~1400

     1200~1250

    Elastic Modulus

    Gpa

     -
     -

    200

    205

    Thermal Conductivity

    W/m,k

     -
     -

    3

    3

    Fracture Toughness

    Mpam1/2

     -
     -

    ≥8.5

    7-10

    Grain Sizes

    µm

     -
     -

    ≦0.5

    0.1--55

    Thermal Expansion Coefficient

    (20~400 ℃)

    10*10-6/℃ (20-400)

     -
     -

    9

    11


    Zirconia Ceramic Balls Application :

    It is suitable for grinding and dispersion of ultra-fine material such as electronic ceramics, magnetic materials, high purity ceramics material such as alumina oxide, silicon oxide, zirconium silicate and titanium dioxide: foodstuffs, cosmetic and pigment, inks, paint and coating materials.



    Product Technical Data (2- Ceramic Grinding Media)

    Product PDF Brochure Download
