Product Name:Silicon Carbide Bulletproof Tiles

  • Product Category:
    • Product Details:
      Reaction sintered Silicon Carbide Bulletproof Tiles is widely used in mining, ore crushing, screening and high wear and corrosion fluid material conveying.
    • E-Mail:

    Silicon Carbide Bulletproof Tiles

    Reaction sintered Silicon Carbide Bulletproof Tiles is widely used in mining, ore crushing, screening and high wear and corrosion fluid material conveying.Silicon carbide steel shell lined with products, due to its good abrasion resistance and corrosion resistance, is suitable for conveying powder, slurry, widely used in mining, mineral processing and power plants and other industries.

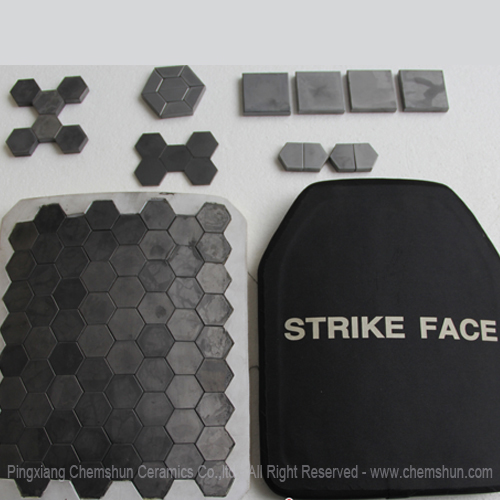

    Chemshun Ceramics-silicon carbide pulletproof tile liner



    Silicon carbide (SiC), also known as carborundum, is a compound of silicon and carbon with a chemical formula SiC. It occurs in nature as the extremely rare mineral moissanite. Silicon carbide powder has been mass-produced since 1893 for use as an abrasive. Grains of silicon carbide can be bonded together by sintering to form very hard ceramics which are widely used in applications requiring high endurance, such as car brakes and ceramic plates in bulletproof vests. Electronic applications of silicon carbide as light emitting diode and detector in early radios have been demonstrated around 1907, and nowadays SiC is widely used in high-temperature semiconductor electronics. Large single crystals of silicon carbide can be grown by the Lely method; they can be cut into gems known as "synthetic moissanite". Silicon carbide with high surface area can be produced from SiO2 contained in plant material


    2. Key Features of Sintered Silicon Carbide(S-SIC)Bulletproof Tiles

    1). High temperature tolerance,temperature up to 1600

    2). Wear resistance

    3). Corrosion resistance

    4). High bending strength

    5). high hardness

    6).light weight

    7).oxidation resistance

    8).perfect efficiency of sealing

    9).long time service life

    10).Heat shock stability

    11). Highly performance of mechanical strength

    12).Cleaning or etching the hardest sub-surfaces

    13).Used for grinding, lapping, and wire saw cutting as well as abrasive blasting

    14).Self-lubrication

    15).Lower thermal expansion coefficient

    16). High thermal conductivity

    17).All shape customized, can be square, hexagonal, cylindrical,or disc-like etc.

    18). It is manufactured by pressureless sintering.or Reaction-Bonding

    3. Applications:

    Body Armor Plates

    High-Tech Vehicle Armor Protection and Watercraft defence.

    4. Specifications:

    Name: bulletproof plate (single curve)

    Material: SiC ceramic

    Protection level: NIJ 0101.04 Level III (Stand alone)

    Size: 10*12 (250mm*300mm)

    Weight: 2.4kg

    With waterproof cover


    USA NIJ 0101.04 STANDARD

    Class

    Test-bullet

    Bullet Weight
    (g)
    (gr.)

    Bullet Velocity
    (m/s)
    (ft/s)

    Distance
    (m)

    Max. BFD
    (mm)

    No. of Shots
    per Panel

    No. of Test

    I

    .22 Caliber LR
    LRN

    2.6
    40

    329+-9
    1080+-30

    5

    44

    6

    4

    .380 ACP
    FMJ RN

    6.2
    95

    322+-9
    1055+-30

    5

    44

    6

    4

    II-A

    9mm
    FMJ RN

    8.0
    124

    341+-9
    1120+-30

    5

    44

    6

    4

    .40S&W
    FMJ RN

    11.7
    180

    322+-9
    1055+-30

    5

    44

    6

    4

    II

    9mm
    FMJ RN

    8.0
    124

    367+-9
    1205+-30

    5

    44

    6

    4

    .357 Mag
    JSP

    10.2
    158

    436+-9
    1430+-30

    5

    44

    6

    4

    III-A

    9mm
    FMJ RN

    8.2
    124

    436+-9
    1430+-30

    5

    44

    6

    4

    .44 Mag
    JHP

    15.6
    240

    436+-9
    1430+-30

    5

    44

    6

    4

    III

    7.62mm Nato
    FMJ

    9.6
    148

    847+-9
    2780+-30

    15

    44

    6

    2

    IV

    .30 Calier
    M2 AP

    10.8
    166

    878+-9
    2880+-30

    15

    44

    1

    2


    5. Technical data



    Properties

    Units

    RSiC

    SiSiC

    SSiC

    Bulk denstity     SiC


    Vo1%

    ≥99

    ≥85

    ≥99



    Bulk density

    g/cm3

    2.602.72

    3.01

    3.10-3.15

    Apparent porosity

    %

    15

    0.1

    0.2

    Modulus of rupture at 20℃

    Mpa

    8090

    250

    400

    Modulus of rupture at 1200℃

    Mpa

    90100

    280

    650

    Modulus of elasticity at 20℃

    Gpa

    -

    330

    410

    Thermal Conductivity at 1200℃

    w.m-1.k-1

    35.0

    45

    55

    Thermal expansion  at 1200℃

    a×10-6/℃

    4.60

    4.5

    4.0

    Thermal shock resistance at 1200℃


    Very good

    Very good

    Very good

    Max.working temperature

    1650(oxid)

    1350

    1600


    Service:

    Any requirment about chemshun Alumina Ceramic Square Mosaic Tile , Silicon Carbide Bulletproof Tiles, Wear Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service. web:www.chemshun.com . Tel:86-799-6790781


    Export:

    Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
