Product Name:Rubber backed alumina ceramic tiles

  • Product Category:
    • Product Details:
      rubber backed ceramic wear tiles specially for wear area with high impact and wear chute liner, hopper liner .
    • E-Mail:

     Rubber Backed Alumina Ceramic Tiles

    Rubber backed alumina ceramic tiles are perfect combination of hardness and flexibility.

    Rubber backed ceramic tiles are perfect combination of hardness and flexibility. Chemshun ceramic cylinders are vulcanized into the rubber backing with appr.45 Shore A hardness, offering high impact and noise reduction beside of excellent abrasion resistance. Chemshun rubber components panels are engineered and designed to the needs of our customers.Our standard sizes includes mats 500x500 mm, 300*300mm, 150*150mm consisting cylinder 31*31mm,hexagonal alumina tile,square mosaic tile,plain tile. ZTA ceramic backed rubber sheet also can be supplied.

    1: Rubber backed ceramic tiles Application :


    Applied  Equipment


    Discharge Chute , Transfer Chute ,  Reflectors And Impact Plate, Bunker & Bin Conveyor

    Skirt Liners,  Stacker And Reclaimers,

    Silo Belt Stock House, Coal Feeder,

     Coal hopper,

    Coal fired power plant

    Port Industry

    Steel industry

    Cement plant

    2:  Chemshun Ceramic Liner suggestion according to your wear area:

    Rubber Ceramic Wear Liner Suggested :

    Ceramic Tile Suggested :

    1chemshun ceramic wear liner application.jpgchemshun ceramics tile liner application.jpg

    Wear Area Character : Condition of

    extremely impact and abrasion,Typical

    materials handled like gypsum,lime,gravel,

    coal,ores,especially size more than 40mm,

    Machines like chute,hopper,bunker,stacker

    & reclaimer.

    Wear Area Character : Condition of air

    and wind powder conveying system,typical

    materials like ash,sand,cement, dust.

    machines likepipeline,hopper,chute,cyclone

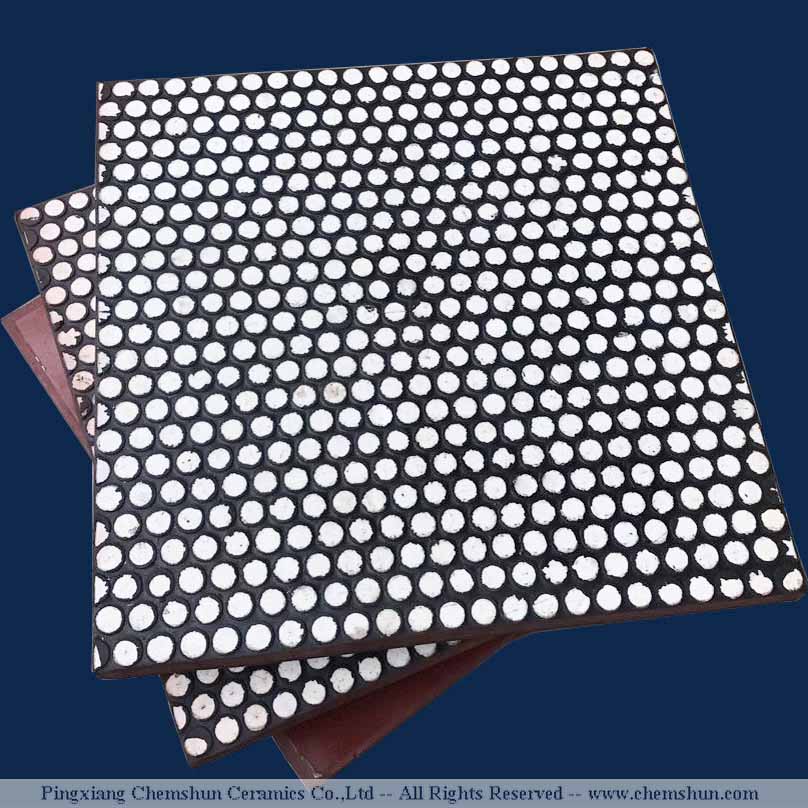

    3: Chemshun rubber backed ceramic tile (500*500*20mm )

    Chemshun ceramics- rubber backed ceramic tile.jpg

    4: Rubber ceramic plate features:

    > High wear and abrasion resistance.

    > Long wear life, low maintenance and downtime.

    > Significant noise reduction

    > Available in a wide variety of shapes and sizes

    > Corrosion resistant

    5: Chemshun Rubber Ceramic plate Sizes



     Alumina Content

    Al.2O3 92%

    Al2O3 95%


    Ceramics Vulcanized

     Square Mosaic Tile,  Rectangle Tile ,  Plain Tile ,

     Hexagonal Tile ,   Alumina Cylinder

     Ceramic Thickness

    15mm ~ 50mm

     Rubber Thickness

    3mm ~10mm

    Steel Thickness

    3mm ~ 10mm

    Normal Size

    150*300 , 200*200, 300*300,

                         500*500, 450*300, 530*450,

    Sheet Structure

    Ceramic Steel ,Ceramic Rubber, Ceramic Rubber Steel

    Product Technical Data (1: wear resistant ceramic)

    Product PDF Brochure Download
