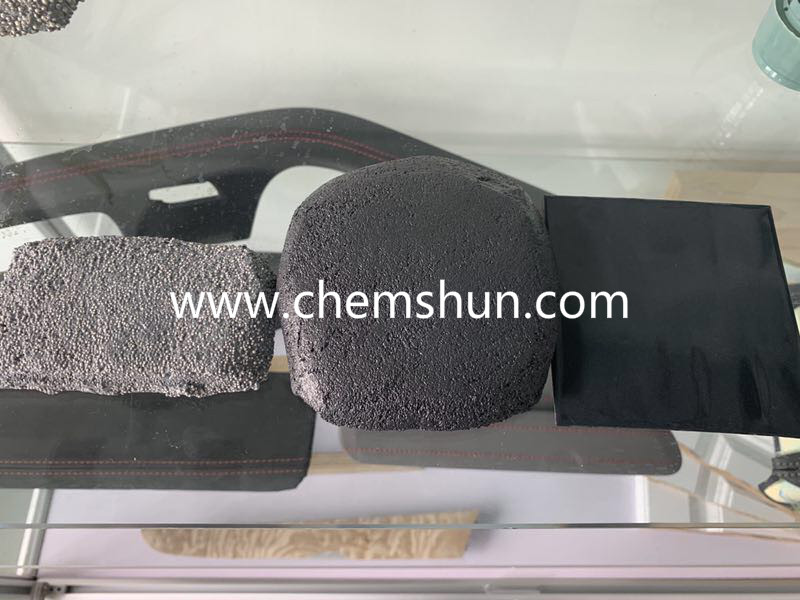

Silicon carbide wear-resistant epoxy ceramic coating
The ceramic coating is made of ingredient A and ingredient B,it contains high-performance wear resistant particles as a protective layer against impact and corrosion. This ceramic coating has good wear resistance and anti-corrosion, it is suitable for operation in air or facade condition, it won't drop and slip.
It can be used for the wear repair and wear protection of pump shell, impeller, fan, pipe, cyclone, agitator, chute, liner and other equipment and its technical specification as following:
Item | Value |
Color | A:Grey,B:Yellow |
Density(g/cm3) | 2.1 |
Weight ratio(A:B) | 10:1 |
Operation time(200g,min) | 30 |
Solidifying(h) | 24 |
Harness (ShoreD)GB/T2411-1980 | 85.0 |
Compressive Strength(Mpa) GB/T1041-1992 | 100.0 |
Tensile Strength(Mpa) GB/T6329-1996 | 46.0 |
Shear Strength(Mpa) GB/T7124-1986 | 20.0 |
Bending Strength(MPa) ASTM D 790 | 54.0 |
Elasticity modulus (Gpa) ASTM D 638 | 21.0 |
Coefficient of thermal expansion (mm/mm×℃) | 10-5 |
Cure shrinkage rate (%) ASTM D 2556 | 0.01 |
Covering area for 1Kg (m2 ,2mm thicnkess) | 0.24 |
Working temperature (℃) | -60~150 |
This kind coating sometimes can replace ceramic tiles and epoxy glue in a certain application for wear problem.
Chemshun ceramics is a professional manufacturer of the wear resistant ceramic, we can offer various kinds of epoxy glue which is used for ceramic installation. If you have any interest, you can contact us by mail: office@chemshun.com or call us by the telephone: +86-799-6790781.
