The cyclone separator is a critical piece of equipment that utilizes centrifugal force for solid-liquid separation and classification, and is widely used in mining, metallurgy, coal, petrochemical, and environmental protection industries. During operation, the high-speed rotating solid-liquid two-phase flow generates continuous and severe impact and abrasion on the internal walls, particularly at the feed inlet, cone section, and apex discharge port. This wear not only causes shell thinning and structural failure but also reduces separation accuracy and classification efficiency due to increased internal surface roughness, ultimately significantly shortening equipment service life and driving up maintenance costs. Consequently, equipping cyclones with high-performance wear-resistant liners is a core technical measure to ensure their long-term, stable operation.

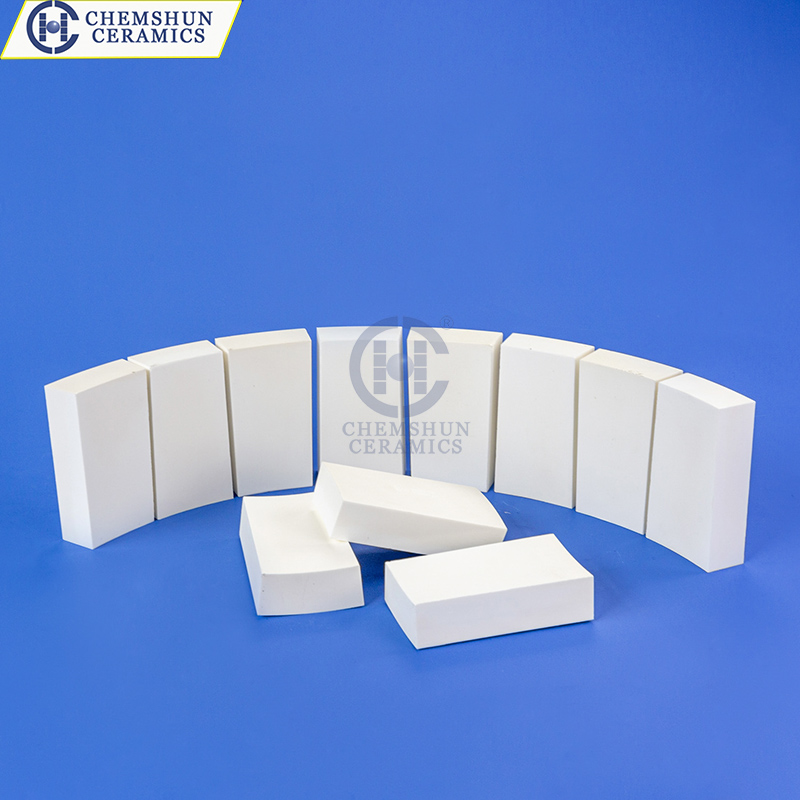

Wear-resistant ceramic materials have become the ideal choice for cyclone liners due to their high hardness, excellent wear resistance, and good corrosion resistance. Among them, alumina ceramics (Al2O3) are widely used owing to their mature manufacturing processes and stable physicochemical properties, with a Mohs hardness of up to 9, second only to diamond. For high-impact or extreme wear conditions, materials such as zirconia-toughened alumina (ZTA) and silicon carbide (SiC) offer superior solutions. These ceramic liners, typically in the form of plates or tiles, are affixed to the inner wall of the cyclone shell using specialized adhesives or mechanical methods. They effectively resist erosive wear from materials, extending equipment service life to several times that of conventional steel or rubber linings.

In practical engineering applications, the design of wear-resistant ceramic liners must comprehensively consider the specific operating conditions of the cyclone, including material characteristics, particle size, operating temperature, and impact intensity. The shape of the ceramic liner needs to be custom-designed according to the geometry of the cyclone cylinder, cone, and outlet pipes to ensure a tight fit with the shell and prevent locally accelerated wear caused by gaps. Furthermore, the installation process is equally critical; professional execution and experienced technicians ensure secure bonding and a smooth surface, thereby maximizing the wear-resistant potential of the ceramic material. Pingxiang Chemshun Ceramics Co., Ltd, as a professional manufacturer and developer of wear-resistant ceramic products, is committed to providing comprehensive anti-wear solutions for cyclones, spanning from ceramic liner design and production to on-site installation. Its products have been widely applied in demanding industrial sectors such as mining, effectively resolving severe equipment wear issues.
