Product Name:Ceramic Grinding Media

  • Product Category:
    • Product Details:
      Chemshun ceramic grinding media for mining and mineral used in high intensity stirred mills for fine and ultra fine grinding. The ceramic grinding beads is ideally suited as a lower cost alternative for High Intensity Mills such as the Glecore IsaMill, or the Outotec HIGMill,METSO SMD Mills,as well as in Vertical and Horizontal Bead Mills.
    • E-Mail:

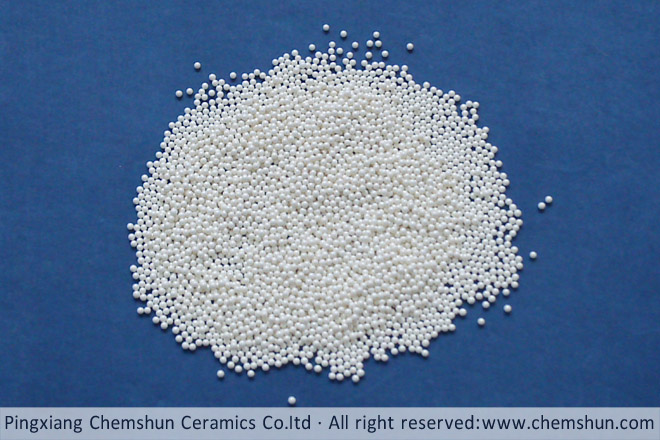

    Ceramics grinding media for mining and Mineral


         Chemshun Ceramics grinding media for mining and Mineral is small size ceramic balls or ceramic beads , used in high intensity stirred mills for fine and ultra fine grinding. The ceramic grinding beads is ideally suited as the cost effecient alternative for High Intensity Mills such as the Glecore IsaMill, Outotec HIGMill,METSO SMD Mills,as well as in Vertical and Horizontal Bead Mills.

         Chemshun Ceramics developed a wide range of ceramic grinding media with different composition and size , and good feature of high impact resistance , The property of inert and no pollution ,in some mining grinding process the ceramic grinding media can replace the traditional steel and chrome steel grinding media for applications where downstream processes are sensitive to surface chemistry and also could avoid to the generation of slimes which combined with those traditional media’s angular shape and high wear rates.

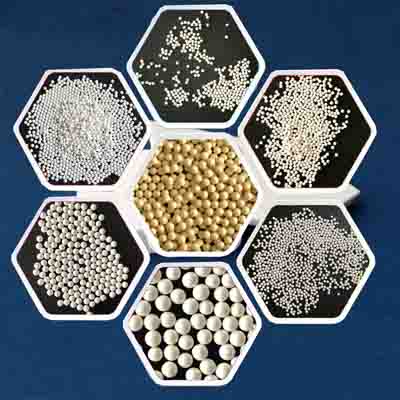

    Chemshun Ceramics grinding media including:

    >> High-performance, Low-density ceramic grinding media:

    CS26 with unmatched economic and performance advantage in fine and ultra-fine grinding process of soft mineral materials with low slurry density.

    >> High-performance, middle density ceramic grinding media:

    CS32, CS36, CS38, CS40, which widely used in the grinding mill of mining and minerals and suitable for hard minerals, high density slurry of minerals. The series media improve cost efficiency of customer.

    >> High-performance, high density ceramic grinding media:

    CS52, CS60, CS62 with the best grinding, mixing and dispersing efficiency. This zirconia-based grinding medias is the optimum combination of efficient and cost-effective products to enhance productivity and quality.


    The Benefits of Chemshun Ceramic grinding media:

    >> High grinding efficiency

    >> Decreasing product contamination

    >> Longer product life cycle

    >> Reduce mill wear and maintenance cost, less down time

    >> Less energy than steel or iron balls

    >> Less cost per volume than high-density steel media alternatives


    The Features of Chemshun Ceramic grinding media:

    >> High hardness

    >> Superior impact and wear resistance

    >> Uniform size and good roundness

    >> Inert Chemical and environmentally friendly

    >> Engineered made


    The detailed information of ceramic grinding media:

    Item

    Main

    Diameter

    Density

    Application       Suggestion



    (mm)

    (g/cm3)

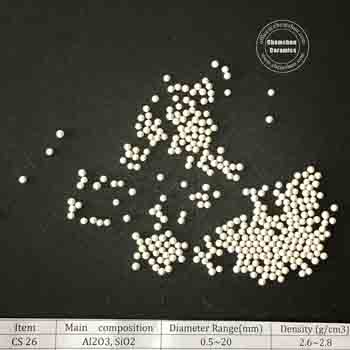

    CS-26

    Al2O3,SiO2

    0.5~20

    2.6~2.8

    It’s suitable for the stirred mill such as Metso’s SMD and fine milling process of soft materials with low slurry density.

    CS-32

    Al2O3, SiO2

    ZrO2

    0.5~20

    3.2~3.3

    It’s suitable for   the stirred mill such as Metso’s SMDand milling the hard   minerals.

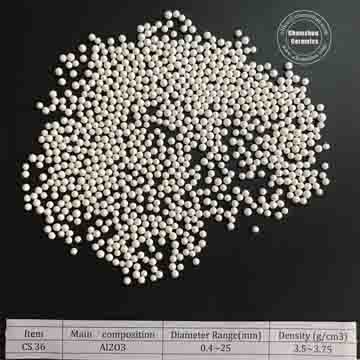

    CS-36

    Al2O3

    0.4~25

    3.5~3.75

    It suitable for the   Nano-size material grinding.

    CS-38

    Al2O3, ZrO2

    0.4~20

    3.8~3.9

    It’s suitable for   the stirred mill such as Metso’s SMD and milling the hard   minerals.

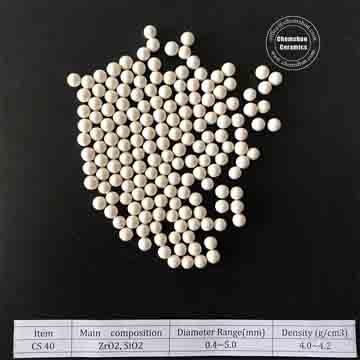

    CS-40

    ZrO2,SiO2

    0.4~5.0

    4.0~4.2

    It’s suited for   high speed milling of mineral ores and similar hard materials.

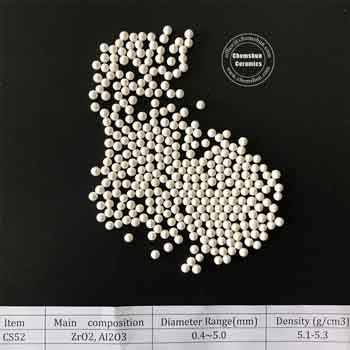

    CS-52

    ZrO2,Al2O3

    0.4~5.0

    5.1-5.3

    It suitable for   the hard materials’s superfine mills with high speed (up  to 14m/S) and high energy input. For example: Outotec’s   HIG mill. Flsmidth VXP.

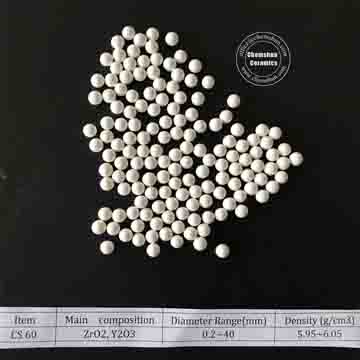

    CS-60

    ZrO2,Y2O3

    0.2~40

    5.95~6.05

    1.Chemical materials,paint,printing,ink,pigment.

    2.Advanced ceramics pastes or powder.

    3.Electronic  pastes: gold platinum, silver, cuprum,   nickel.

    4.Food stuff, pharmaceuticals, cosmetics.

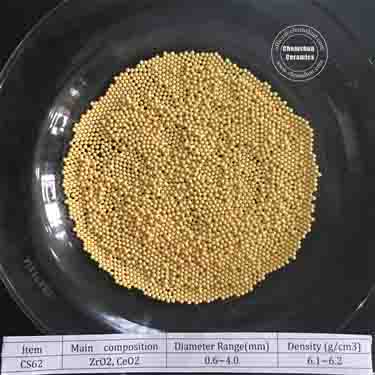

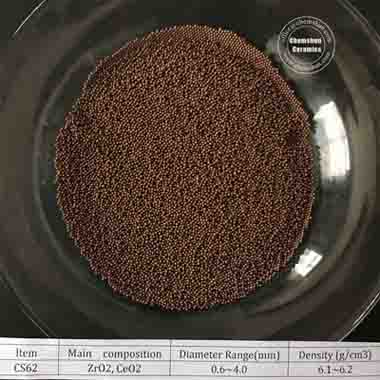

    CS-62

    ZrO2,CeO2

    0.6~4.0

    6.1~6.2

    Remark:

    CS-26, CS-32, CS-36, CS-38, CS-40, CS-52 are best  suitable for the industries of:

    1).Metallic minerals: copper, silver, nickel, Zinc etc.

    2).Non-metallic minerals: Kaolin clay, Calcium carbonate, Zirconium Silicate .


    CS52, CS 60, CS62 are best suitable for the industries of :

    Paints & Coating, Ink, Pigment & Dyes, Cosmetics, Electronic Ceramics, Agrochemicals.


    Package :

    1.1000kg/jumbo bag.

    2.25kg/bag, small bags put into jumbo bag.

    3.CS-52, CS-60, CS-62 by plastic drums, then drums fasten on pallet.
