Ceramic lined steel pipeline is widely used for conveying industrial materials in mining,cement,steel,port, power generation etc. As a wear resistant ceramic manufacturer company, Chemshun Ceramics can produce kinds of wear resistant ceramics lined in steel pipeline,like trapezoidal ceramic tile, curved inter-locking alumina liner,  ceramic elbow pipe liner ,ceramic mosaic tile mat.

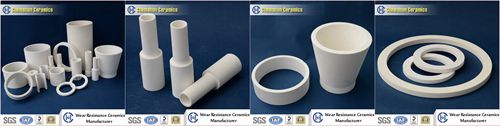

Solution-1 : Steel pipeline lined with ceramic pipe cylinder

  -- Ceramic tubes & bends : Dia 100 ~ 500 mm, ,Length 100- 500

  -- Feature : easy to fix and few gaps

Solution-2 Steel pipe lined with alumina ceramic mosaic tile mat

  -- Ceramic mosaic tiles : 10*10 mm, 15*15 mm. 17.5*17.5mm, 20*20mm with thickness 2-6mm,

  -- Tile mats : 150*150mm, 300*300 mm, 500*500 mm etc.

  -- Features : Easy to fix on the inner surface and the mat is easy to roll-over due to the small mosaic tile and then save the installation time & cost

Solution-3 Steel pipe lined with ceramic trapezoidal pipe tile

-- Ceramic trapezoidal pipe tiles : 150*33/28*13 mm  150*43/47*25 mm

                            150*47/53*25mm  150*43/47* 50 mm

                            100*35/32*13 mm

-- Features : Low Cost

Solution-4 Steel pipe lined with Curved inter-lock tiles

-- Ceramic linings : As per clients’ requirements

-- Feature : The tiles could be connected tightly by it’s groove and lock, and the roundness is better than other tiles

The  ceramic elbow pipe liner  is much easily installed ,but ceramic pipe liner is most economic for buyers, so as an industry ceramic manufacture company , chemshun ceramics will suggest the ideal abrasion resistant ceramics for convey pipeline
