Varies of sizes available for abrasion resistant weld-on tile
Chemshun Ceramics® make alumina ceramic abrasion resistant tiles plate in different sizes and thickness , it depends on operating conditions place where they are mounted ,Plain Tiles are fixed with special epoxy glue that has very good properties of fixing . sometimes as lining of surface , which are exposed to high temperatures and vibrations , epoxy glue is not enough to assure the quality of metal-ceramic. plate with holes are beside glue , additionally fixed to surface with steel ferrule,which is welded on it . or it is adjusted to surface with screw and nut , some plates can be adjusted mechanically , because they can swallows tale .
We have varies of welded abrasion resistant tile for export. Standard sizes as follows :
We have varies of welded abrasion resistant tile for export. Standard sizes as follows :
Alumina ceramic weldable tile popular Sizes (Length*width*thickness ) |
100*100*20mm (4”x4”x3/4”) |
150*100*13mm (6”x4”x1/2”) |
150*100*15mm (6”x4”x5/8”) |
150*100*20mm (6”x4”x3/4”) |
150*100*25mm (6”x4”x1”) |
150*100*50mm (6”x4”x2”) |
150*50*25mm (6”x4”x1”) |
100*75*25mm (4”x3”x1”) |
120*80*20mm |
228*114*25mm |
114*114*25mm |
More sizes and customized size acceptable. Chemshun ceramics afford the relative weldable steel cone and ceramic rod. |

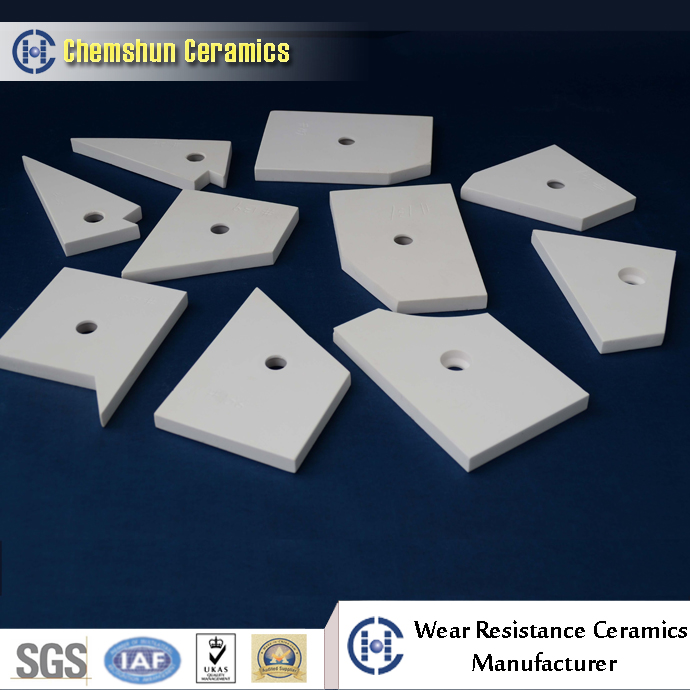

Besides standard alumina ceramic welded tile liner , Chemshun Ceramics® also can
Supply engineered abrasion resistant tile for irregular equipment sizes, CAD design
And precision controlled tailor guarantee all pre-engineered welded tile geometric dimension
Chemshun Ceramics® as 15-year industry ceramic manufacturer , we can solve your abrasion problem well, welcome to inquiry .
