Product Name:ZTA Ceramic Rubber Sheet

ZTA Ceramic Rubber Sheet


ZTA ceramic rubber sheet is combination of ZTA ceramics and rubber sheet.steel plate. It is more wear resistance than alumina ceramics wear liner by adding purity zirconia. Chemshun Ceramics can supply ZTA ceramic plate, cylinder, balls, hexagonal tile,cube for vulcanization .

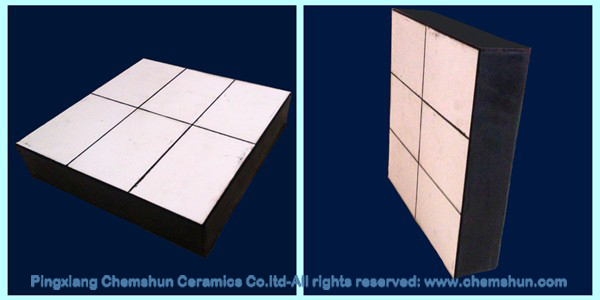

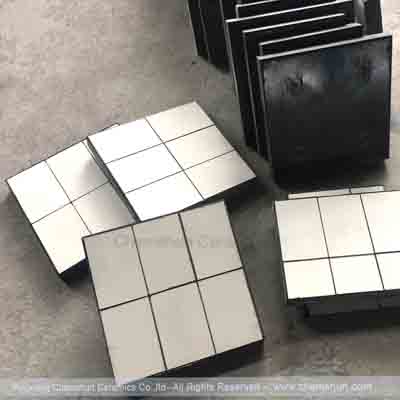

rubber ceramic wear liner sheet from chemshun ceramics

ZTA Ceramic Rubber Wear Liner Technical Data Sheet

  Ceramic Property
  Appearance  White, Smooth
  Alumina Content  22% ZrO2+ 77%Al2O3
  Density (g/cm3)  4.20
  Vickers Hardness (HV10)  1300
  Fracture Toughness (Mpa.m1/2)  5-6
  Porosity (%)  0
  Ceramic Shape  Ceramic Tile/ Cubes/Cylinder/Hex tile
  Rubber Property
  Composition  Nature rubber + SBR
  Shore hardness  60±5
  Tensile strength (Mpa)  25
  Tensile elongation rate (%)  >400%
  Tear strength (%)  30
  Bonding strength between rubber and ceramics (Mpa)  4
  Panel Size
  300*300mm ,      150*300mm  200*200mm,   500*500mm
  450*300mm ,      530*450mm  Customized size available
