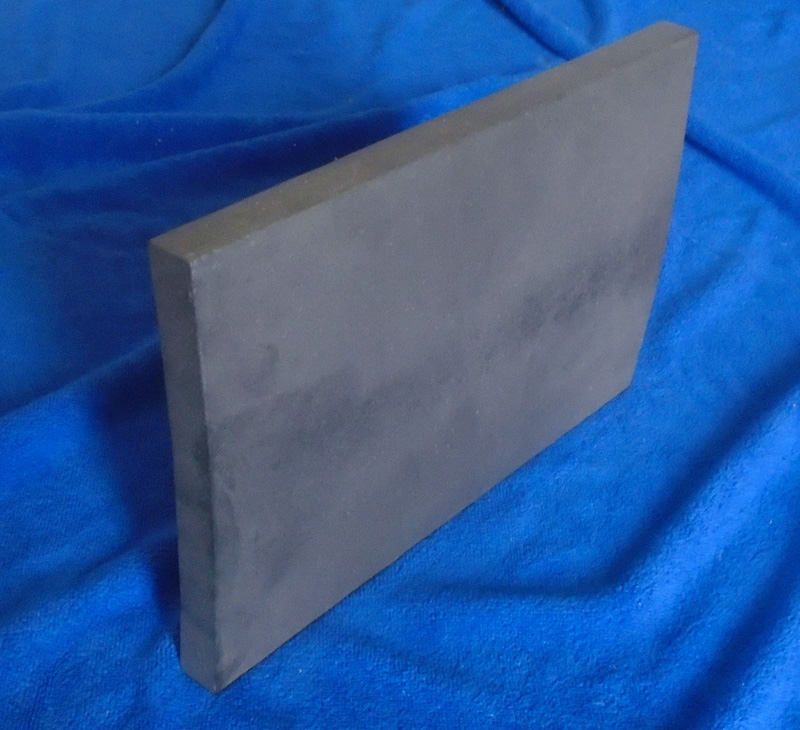

Product Name:Wear Resistant Silicon Carbide Plate

  • Product Category:
    • Product Details:
      Chemshun silicon carbide plate can directly lined equipments like chute, hopper, pipe, etc. And it also can vulcanized rubber plate. Chemshun can produce wear resistant silicon carbide plate by materials of sintered SiC, reaction bonded SiC and recrystallized SiC material. And we can customized shape and size according to your drawings.
    • E-Mail:

    Silicon Carbide plate is a kind of wear resistant liner made by silicon carbide material.


    Chemshun Ceramics silicon carbide plate features:


    ① High hardness and high wear resistance.

    ② High impact resistance.

    ③ Corrosion resistance. Silicon carbide can tolerates a wide range of acids and alkalis.

    ④ High temperature resistance.

    ⑤ Good dimensional control of complex shapes.

    ⑥ High oxidation resistance.


    Our silicon carbide plate can directly lined equipments like chute, hopper, pipe, etc.  And it also can vulcanized rubber plate. Chemshun can produce wear resistant silicon carbide plate by materials of sintered SiC, reaction bonded SiC and recrystallized SiC material. And we can customized shape and size according to your drawings.


    Technical Data :


    Properties


    Units

    RSiC

    SiSiC

    SSiC

     Bulk denstity     SiC


    Vo1%

    ≥99

    ≥85

    ≥99



    Bulk density

    g/cm3

    2.602.72

    3.01

    3.10-3.15

    Apparent porosity

    %

    15

    0.1

    0.2

    Modulus of rupture at 20℃

    Mpa

    8090

    250

    400

    Modulus of rupture at 1200℃

    Mpa

    90100

    280

    650

    Modulus of elasticity at 20℃

    Gpa

    -

    330

    410

    Thermal Conductivity at 1200℃

    w.m-1.k-1

    35.0

    45

    55

    Thermal expansion  at 1200℃

    a×10-6/℃

    4.60

    4.5

    4.0

    Thermal shock resistance at 1200℃


    Very good

    Very good

    Very good

    Max.working temperature

    1650(oxid)

    1350

    1600

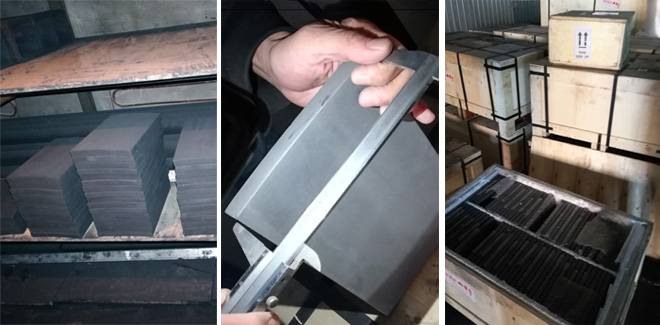

    Chemshun silicon carbide curved plate packing:

    SIC plate packing.jpg
