Product Name:Al2O3 15~22% Inert Ceramic Balls

  • Product Category:
    • Product Details:
      Chemshun Inert alumina ceramic balls are to increase the distribution spots of gas or liquid
    • E-Mail:

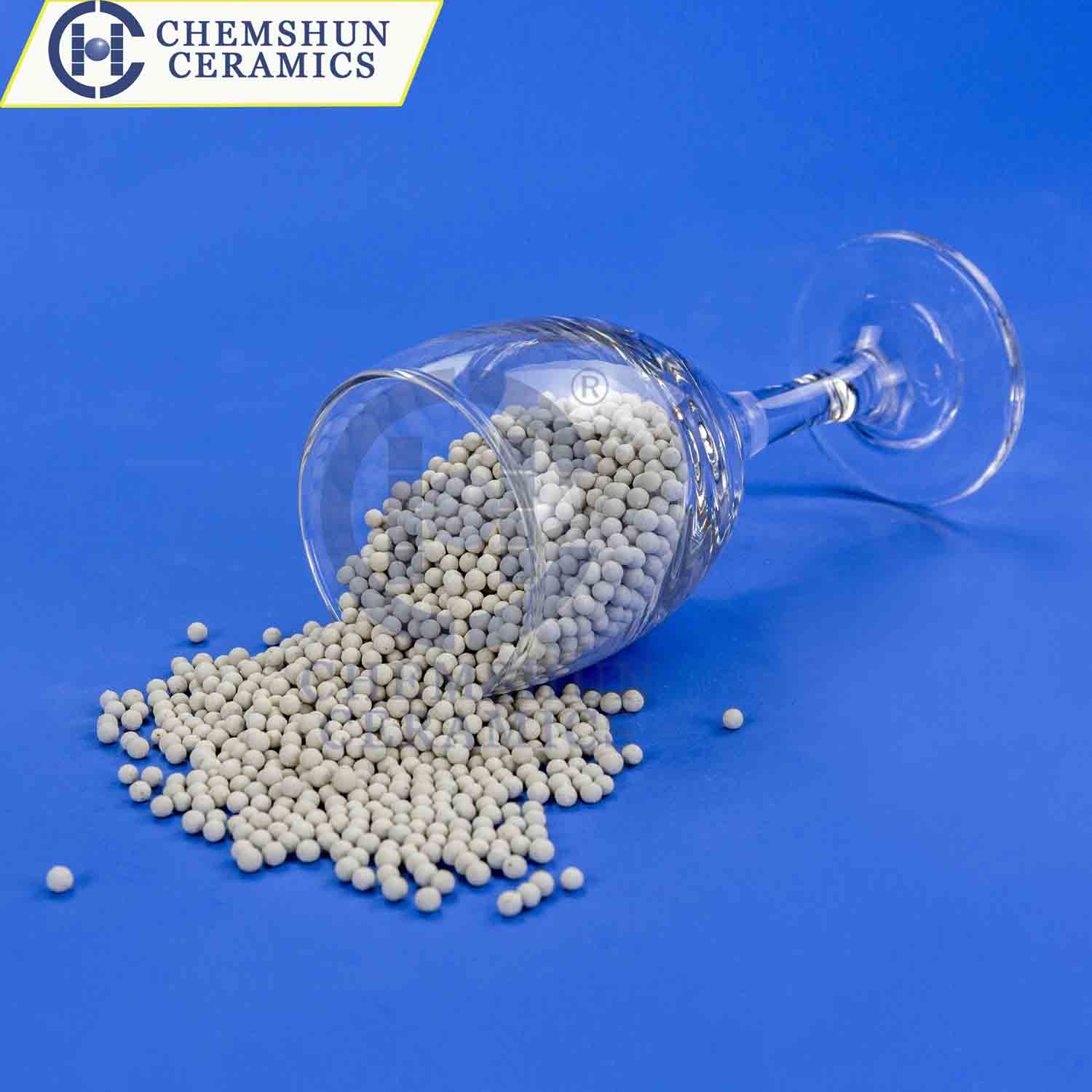

    Al2O3 15~22% Inert Ceramic Balls

    Chemshun Ceramics offer Al2O3 15~22% ceramic balls as catalyst carrier


    Chemshun  inert ceramic balls are to increase the distribution spots of gas or liquid , widely utilized as the covering or supporting materials of the catalyst in the reactors and the packing in the column in such varies areas as petroleum , chemical industry , chemical fertilizer, natural gas and support or protect the active catalyst , which especially have the comparatively lower mechanical strength

    Chemical Composition:

    Al2O3

    SiO2

    Al2O3+ SiO2

    MgO

    K2O+Na2O

    CaO

    TiO2

    Leachable Fe2O3

    15-22%

    <80%

    >95%

    <2.5%

    <4%

    <1.5%

    <0.5

    <0.1%

    Physical properties:

    Items

    Proportion

    Items

    Proportion

    Bulk gravity (g/cm3)

    2.2-2.4

    Water Absorption (%)

    <0.9

    Ignition loss (%)

    =<0.3%

    Moh’s hardness (scale)

    >=6.5

    Heat resistance (℃)

    Up to 980

    Alkali Resistance(%)

    >80

    Acid Resistance(%)

    >98

    Roundness(Max.Dia/Mix.Dia)

    <1.25

    Geometric properties:

    Diameter

    Diameter range

    (mm)

    Crushing strength  (kg/particle)

    Bulk weight

    (kg/m3)

    1/4”

    5~8

    >55

    1455


    Product Technical Data (3:catalyst carrier series)

    Product PDF Brochure Download
