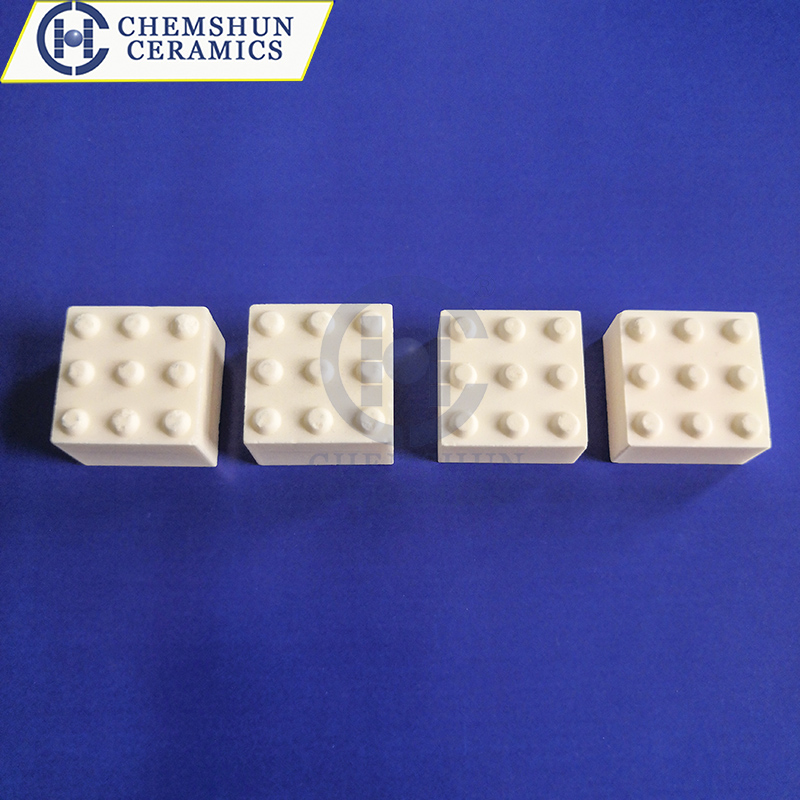

Product Name:Alumina Ceramic Dimple Tile

Detailed description:

Chemshun Ceramics manufactures kinds of ceramic lining pieces with salient point , which is widely applied for vulcanization in rubber. the combination of fine-grain alumina ceramic linings and a specially formulated rubber compound results in a dependable ceramic rubber pulley lagging in conveying applications under extreme operating conditions.The high wear resistance of the embedded ceramic cube in combination with an embossed contact surface ensures long-term maximum traction and elimination of belt slippage. The dimples in ceramic cube greatly enhance the wear resistant property for rubber ceramic combination belt .



Product features:Alumina ceramic products characters
1)High hardness with Moh's hardness 9 grade;
2)High abrasion and chemical resistance;
3)Special dumps designed for more wear resistance;
4)Light weight with various sizes.



Application:
-As wear-resisting lining of coal-electing equipment on coal industry;
-Cements industries;
-As lining of fall funnel, lining of wear-resisting pipe and bender;
-As lining of material tranfer pipe and chute, etc for coal, ash, sinter;
-Material thansfer equipment;
-Inside and outside surface of powder separating equipment on iron and steel works;
-Ceramics, mines and other grinding equipment lining;
-Parts of equipment hermal and power plants;
-Grinding systems Mixer Application areas;
-Separator systems chain conveyor;
-Cyclones diffusor;
-sinter slurry ducts;
-Hooper High temperature cyclones;
-Ventilator housing salt plants.



Measures:

Sizes are available upon request.



S.No.AttributesUnitCHEMSHUN92 CHEMSHUN95
1Alumin Content%9295
2Densityg/cc3.603.68
3Color-WhitePale Ivory
4Water Absorption%00
5Flexural StrengthMpa280300
6Moh's DensityGrade99
7Rock Well HardnessHRA8086
8Vickers Hardness(HV10)Kg/mm210501190-1220
9Compressive strengthMpa850950-1000
10Thermal Expansion Coefficient (25-1000)oc1x10-6/oc7.68.3
11Maximum operation temperatureoc12501250
