Product Name：Al2O3 17~23% Inert Ceramic Balls
- Product Category：
- Product Details：
Chemshun Inert alumina ceramic balls are to increase the distribution spots of gas or liquid - E-Mail:
-

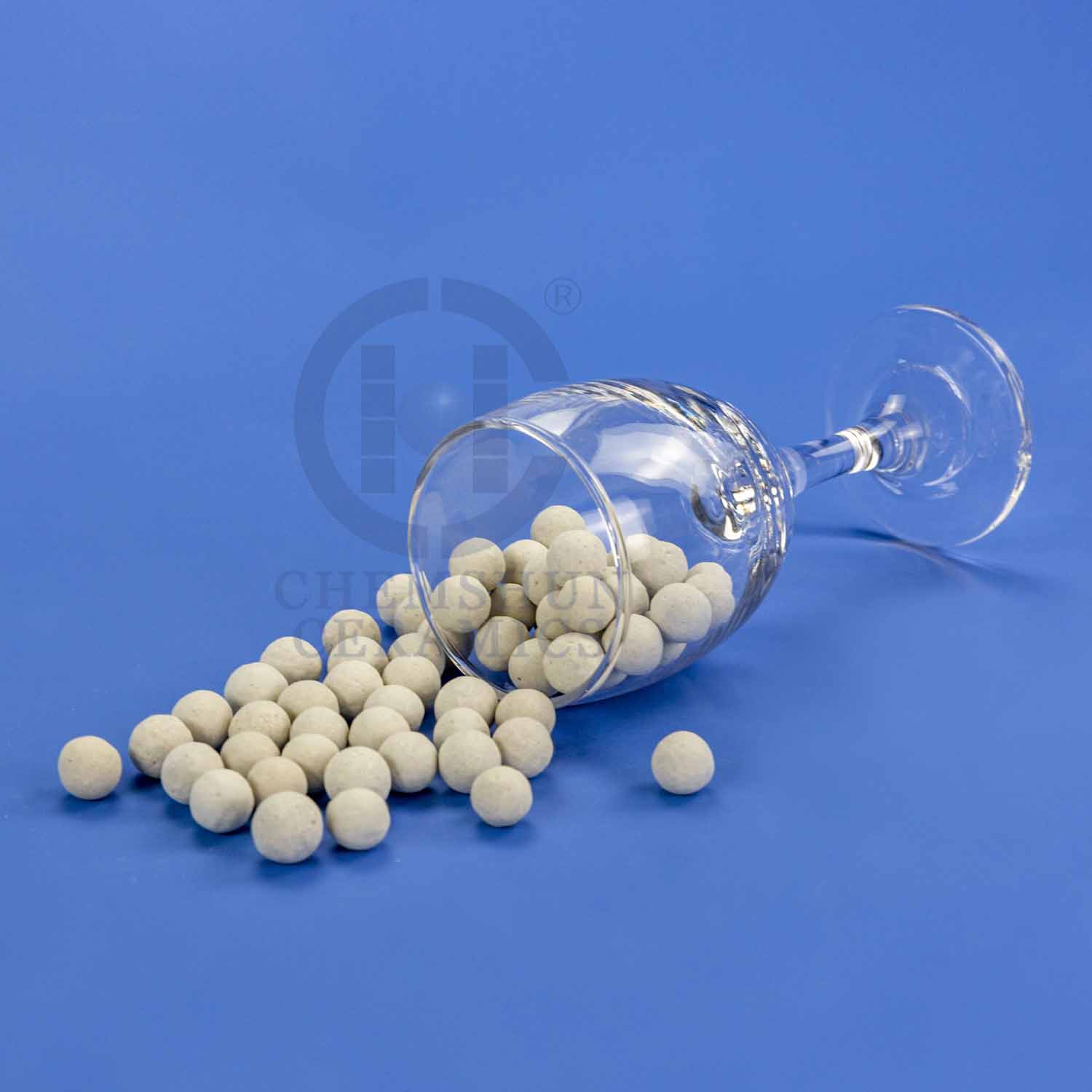

Al2O3 17~23% Inert Ceramic Balls
Chemshun Ceramics offer Al2O3 15~22% ceramic balls as catalyst carrier
Product Description:
Chemshun inert ceramic balls are to increase the distribution spots of gas or liquid , widely utilized as the covering or supporting materials of the catalyst in the reactors and the packing in the column in such varies areas as petroleum , chemical industry , chemical fertilizer, natural gas and support or protect the active catalyst , which especially have the comparatively lower mechanical strength.
Product Characters:
> Stable chemical features and low water absorption
> High temperature and high pressure resistance
> Corrosion resistance of acid, alkali
> Thermal shock resistance during manufacturing process
Geometric Properties
| Diameter | Diameter (mm) | Crushing strength (kg/particle) |
| 17~23 % | ||
| 1/8” | 2-4 | >18.4 |
| 1/4” | 5-8 | >56 |
| 3/8” | 10-12 | >102 |
| 1/2” | 12-14 | >173 |
| 3/4” | 18-21 | >430 |
| 1” | 24-27 | >635 |
| 1-1/4” | 32-34 | >910 |
| 1-1/2” | 35-40 | >910 |
| 2” | 48-52 | >910 |
Applicant
> Co2 degassing tower
> Ozone contact reaction tower
> Acid mist purification tower,
> The synthetic reaction tower packing
1) Chemical Composition:
| Items | 17~23% Series |
| Al2O3 | 17~23% |
| SiO2 | <80% |
| Al2O3+SiO2 | >90% |
| Fe2O3 | <1.0% |
| Na2O+K2O | <4% |
| MgO | <2.5% |
| CaO | <1.5% |
| TiO2 | <0.5% |
| Leachable Fe2O3 | <0.1% |
2）Physical properties:
| Item | Content |
| 17~23 % Series | |
| Heat resistance up to | Up to 982 ℃ |
| Water absorption | <0.9 % |
| Ignition loss | <0.3 % |
| Alkali resistance | > 6.5 |
| Acid resistance | >85% |
| Bulk density (g/cm3) | >99.8% |
| 1.36~1.40 |
Packing:
Product Technical Data （3：catalyst carrier series)
Chemshun Ceramics also recommends these other Catalyst Carrier:
Al2O3 15~22% Inert Ceramic Balls
