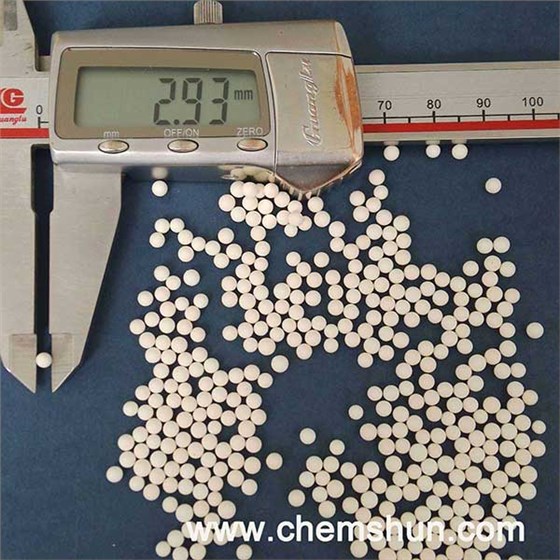

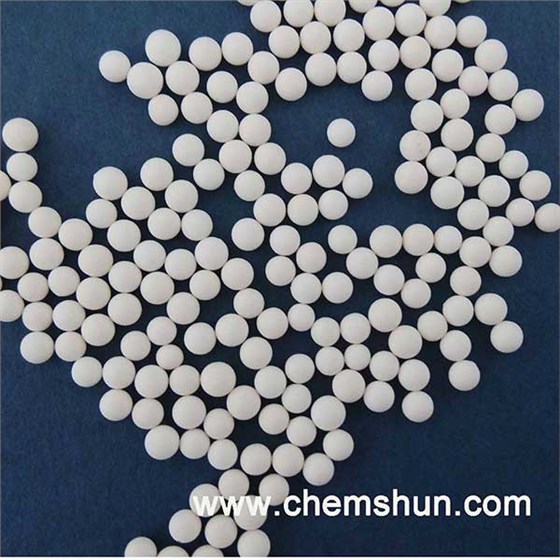

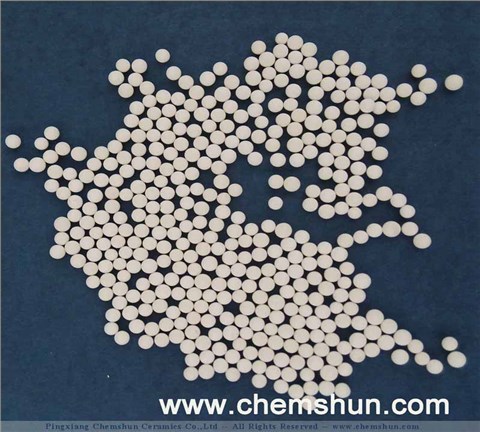

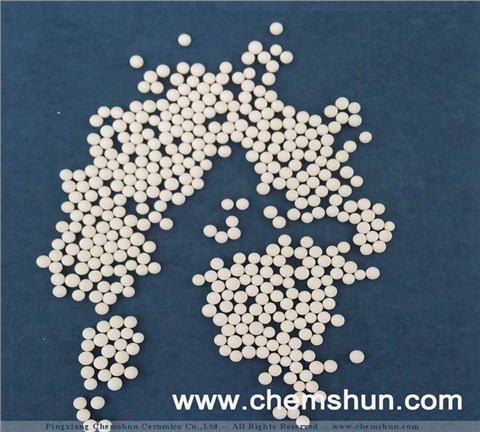

Ceramic grinding media ball-- Zirconiumaluminiumsilicate

Zirconium Aluminium Silicate Beads as grinding mill media is better choice for wet grinding platinum , magnetite , gold , mineral ore etc

1: Comparision of grinding media：

Ceramic grinding media ball are small ceramic balls that are used in high intensity stirred mills for fine and ultra fine grinding applications. The grinding media are available in a multitude of sizes and composition.

Steel and chrome steel grinding media were traditionally used in the mining and metallurgical industry, but the use of ceramic grinding media is growing. Particularly as an inert grinding media for applications where downstream processes are sensitive to surface chemistry.

In the fine and ultra fine milling applications, silica sand and industrial slags are often used as alternatives to ceramic media, but their angular shape and high wear rates, together with increased “slimes” generation, makes these alternatives inferior to ceramic grinding media.

Ceramic grinding media can be manufactured from a range of materials and can be formed by a number of different manufacturing processes. Both of these factors – composition and the manufacturing method – influence the quality of the grinding media. Material composition also determines the density of the ceramic grinding media and hence its impact force.

2: Technical data

3: Main application :

----- Wet grinding of mineral ores (gold, platinum - PGM, silver, magnetite). Large scale milling of calcium carbonate and titanium dioxide. Used in both vertical and horizontal stirred mills.

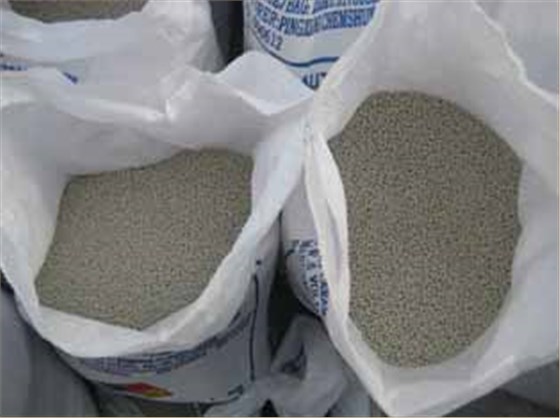

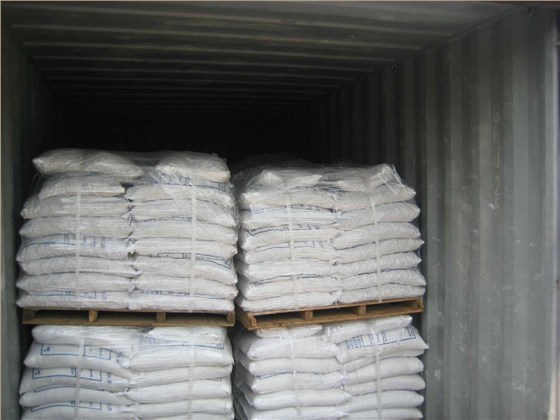

4: Package：

----- 25kg/bag , 1 ton / pallet .

Product Technical Data（2- Ceramic Grinding Media)

Product PDF Brochure Download
