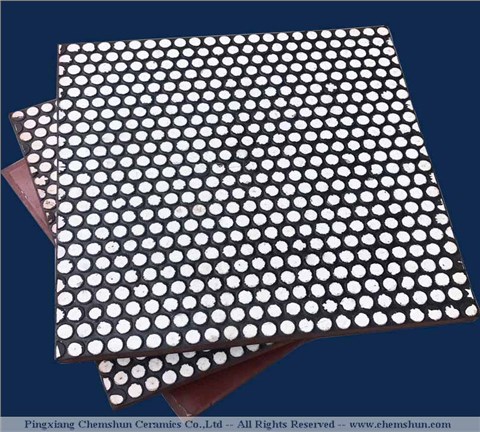

Rubber Backed Alumina Ceramic Tiles

Rubber backed alumina ceramic tiles are perfect combination of hardness and flexibility.

Rubber backed ceramic tiles are perfect combination of hardness and flexibility. Chemshun ceramic cylinders are vulcanized into the rubber backing with appr.45 Shore A hardness, offering high impact and noise reduction beside of excellent abrasion resistance. Chemshun rubber components panels are engineered and designed to the needs of our customers.Our standard sizes includes mats 500x500 mm, 300*300mm, 150*150mm consisting cylinder 31*31mm,hexagonal alumina tile,square mosaic tile,plain tile. ZTA ceramic backed rubber sheet also can be supplied.

1: Rubber backed ceramic tiles Application :




Applied Equipment


Discharge Chute , Transfer Chute , Reflectors And Impact Plate, Bunker&BinConveyor

Skirt Liners, Stacker And Reclaimers,

SiloBelt Stock House,Coal Feeder,

Coal hopper,

Coal fired power plant

Port Industry

Steel industry

Cement plant

2: Chemshun Ceramic Liner suggestion according to your wear area:

Rubber Ceramic Wear Liner Suggested :

Ceramic Tile Suggested :

1chemshun ceramic wear liner application.jpg chemshun ceramics tile liner application.jpg

Wear Area Character : Condition of

extremely impactand abrasion,Typical

materials handled like gypsum,lime,gravel,

coal,ores,especially size more than 40mm,

Machines like chute,hopper,bunker,stacker

& reclaimer.

Wear Area Character : Condition of air

and wind powder conveying system,typical

materials like ash,sand,cement, dust.

machines likepipeline,hopper,chute,cyclone

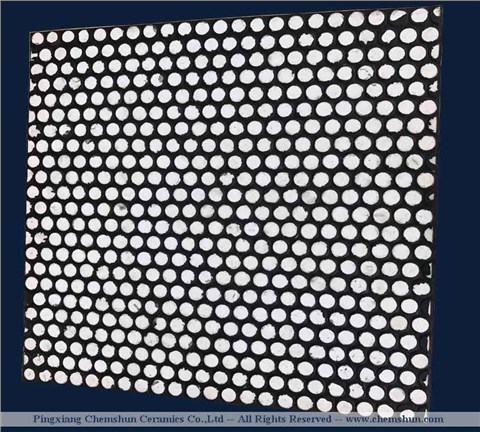

3: Chemshun rubber backed ceramic tile (500*500*20mm )

Chemshun ceramics- rubber backed ceramic tile.jpg

4: Rubber ceramic plate features:

> High wear and abrasion resistance.

> Long wear life, low maintenance and downtime.

> Significant noise reduction

> Available in a wide variety of shapes and sizes

> Corrosion resistant

5: Chemshun Rubber Ceramic plate Sizes



Alumina Content

Al.2O3 92%


Ceramics Vulcanized

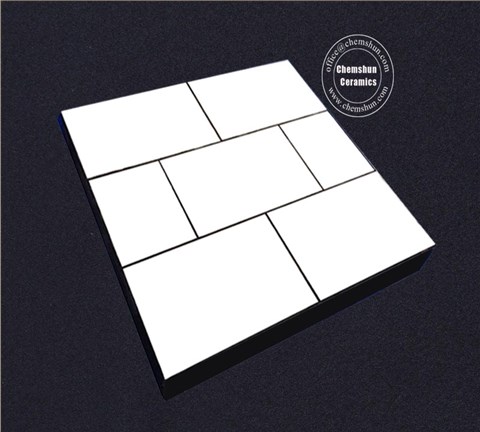

SquareMosaicTile, Rectangle Tile ,Plain Tile ,

Hexagonal Tile ,Alumina Cylinder

Ceramic Thickness

15mm ~ 50mm

Rubber Thickness

3mm ~10mm

Steel Thickness

3mm ~ 10mm

Normal Size

150*300 , 200*200, 300*300,

500*500, 450*300, 530*450,

Sheet Structure

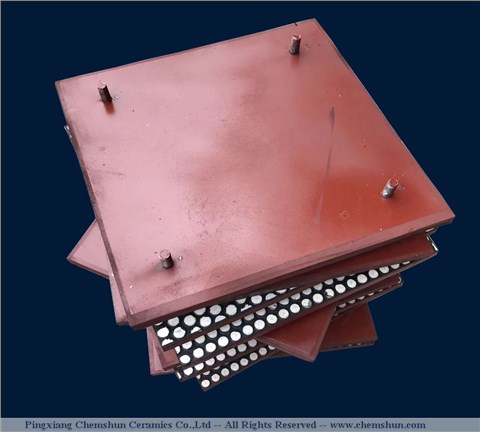

Ceramic Steel ,Ceramic Rubber, Ceramic Rubber Steel


Product Technical Data(1: wear resistant ceramic)
