Product details


Al2O3 92% 95% Ceramic Lined Pipe With Flanges

pre fabricated pipe sleeve / Ceramic lined bend with flanges by ceramic tube, alumina ceramic tile liner, hex tile mat.

As wear resistant ceramics lined pipe supplier, Chemshun Ceramics can custom design and produce kinds of alumina ceramics lining for lined steel pipeline. Several ceramic lined pipe wear solution ways can be offered for customer choice.

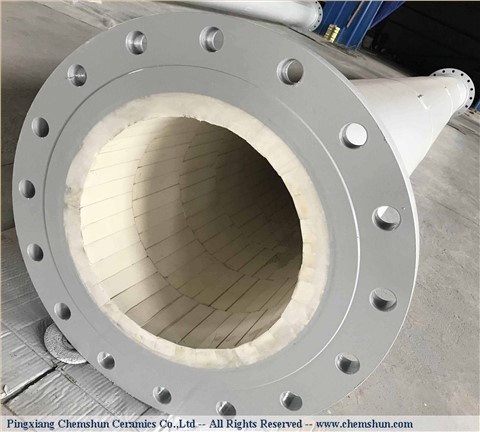

Solution -1 : Lined with trapezoidal ceramic tile liner with size 150*33/28*13mm, 150*43*47*50mm, 100*35*32*13mm, etc.

Feature : Low cost

chemshun wear resistant ceramic tile lined steel pipe

Solution -2 : Lined with wear resistant alumina ceramic tubes & elbow pipes with dia.100-300mm, length 100-500mm

Feature : Easy to fix and few gaps .

Chemshun alumina ceramic tube lined steel pipe

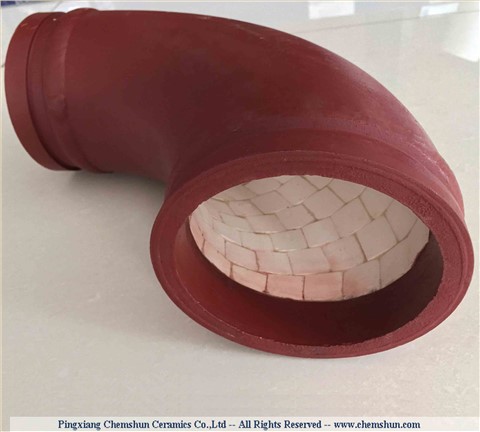

Solution -3 : Lined with alumian ceramic lining with size 150*150mm,300*300mm,500*500mm etc.

Feature : Easy to fix on the inner surface and the mat is easy to roll-over due to the small mosaic tile and then save the installation time and cost .

Chemshun ceramic linings lined pipe

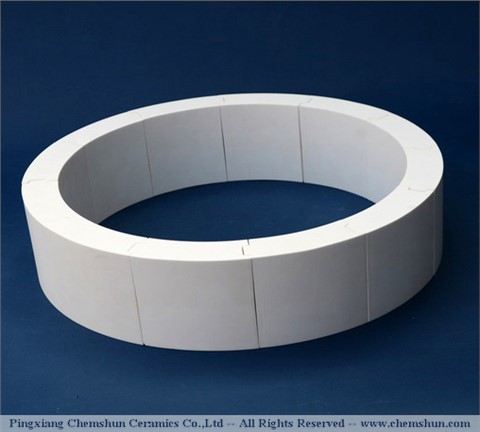

Solution - 4 : Lined with Cuved locking tiles as per clients requirement

Feature : The tiles could be connected tightly by it's groove and lock , and the roundness is better than other tiles

Chemshun wear resistant curved tile liner

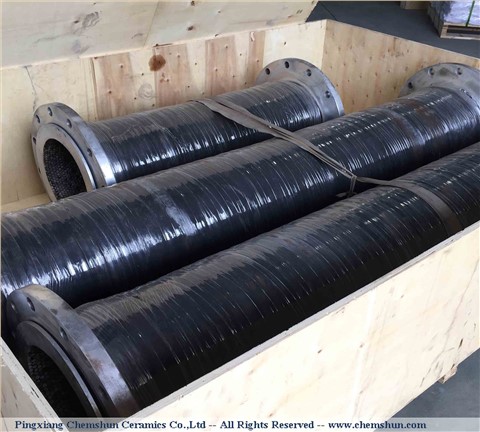

Solution - 5 : Ceramic lined rubber hose with dia 38~300mm

Feature : Flexible and easy connection

Chemshun ceramic rubber composite hose

Product Technical Data(1:wear resistant ceramic)

Product PDF Brochure Download

Product Application Video:

Cyclone with alumina ceramic lining made by chemshun ceramics
