Product Name:7x7x4mm alumina Ceramic Ring As Benzene Anhydride Catalyst Carrier

  • Product Category:
    • Product Details:
      Alumina Ceramic ring as benzene anhydride catalyst carrier After 30 minutes Samples get out and natural cool till in-door temperature.
    • E-Mail:

    Ceramic Ring As Benzene Anhydride Catalyst Carrier


    Ceramic cylinder ring chemical composition :

    Chemical   Composition

         Property

    SiO2

    58-65%

    Al2O3

    4-6%

    TiO2

    0.02-0.4%

    Na2O

    0.01-0.5%

    MgO

    27-32%

    Fe2O3

    1-2%

    CaO

    0.2-0.4%

    K2O

    0.01-0.5%

    Popular Size :

    ODXHXID

    7*7*4 mm

    7*4*4 mm

    Physical property :

         Item

           Property

     Weight

        4.4~4.8 g/pcs

     Electric conductivity

       <5μs/cm

     Radial crushing strength

      >20   kg/ pcs

     Thermal shock resistance



    200g samples put in 450 Celsius degree   muffle furnace

    Temperature of muffle furnace rise up to   450 Celsius degree in the speed of 15/min. After 30   minutes Samples get out and natural cool till in-door temperature ,none of   samples break.

     Package : plastic bag + ton bags .

     Application :  As benzene anhydride catalyst carrier

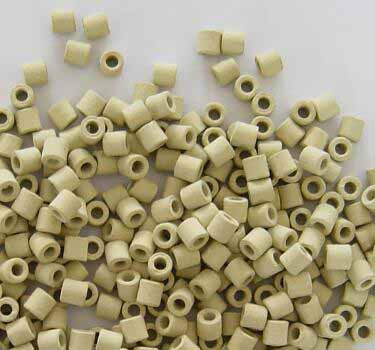

     The picture of ceramic cylinder ring with catalyst

    Ceramic Ring As Benzene Anhydride Catalyst Carrier

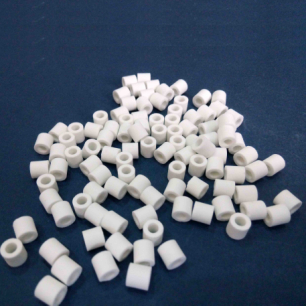

    The picture of catalyst carrier ceramic cylinder ring :

     Ceramic Ring As Benzene Anhydride Catalyst Carrier


    Product Technical Data (3:catalyst carrier series)
