Product Name:Ceramic Rubber Hose

  • Product Category:
    • Product Details:
      Ceramic Rubber Hose is combine ceramics with rubber together, which is more wear resistant and flexible in application.
    • E-Mail:

    Wear Resistant Ceramic Rubber Hose

    The flexible hose is lined with ceramic cylinder for wear resistance,Another advantage is for flexibility , which may curve in any direction.




    Chemshun Ceramic - ceramic rubber hose

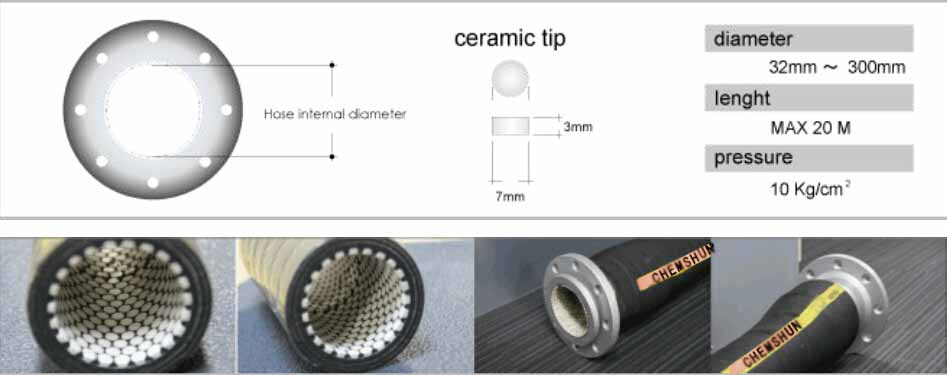

    In the newly developed wear resistant ceramic rubber hose, ceramic cyclinder are used to eliminate the disadvantage in the conventional ceramic ball hoses, It has higher abrasion resistannce while maintaining flexibility compared to conventional ceramic balls hoses,The standard ceramic hose is limited to 20 meters in length and 25 to 400mm in hose inner bore.

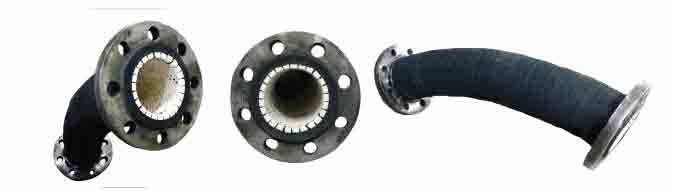

    Elbow type ceramic hose available

    We can produce hose according to customer's requirement,Our new ceramic hose has the circular disk shaped ceramic tipe compared with the conventional ball shaped ceramic tip and shows several times higher abrasion resistance

    chemshun ceramics --elbow ceramic rubber hose with flange

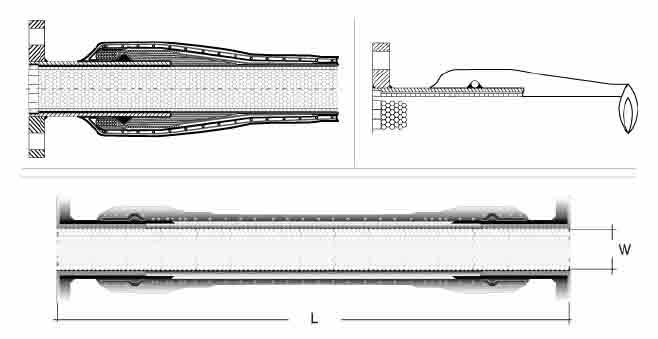

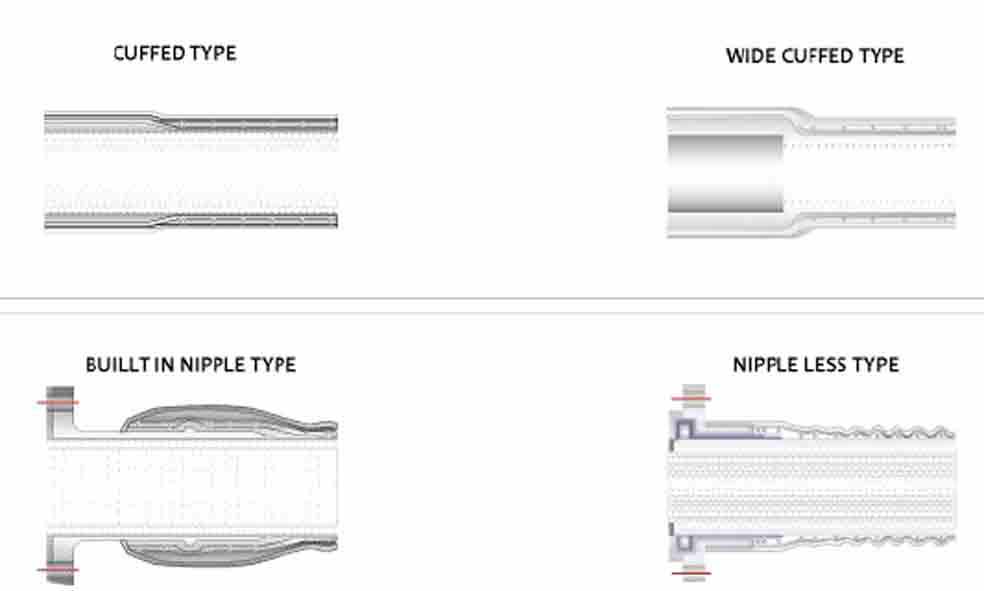

    End shapes of wear resistant ceramic hose


    Pingxiang chemshun rubber ceramic hose

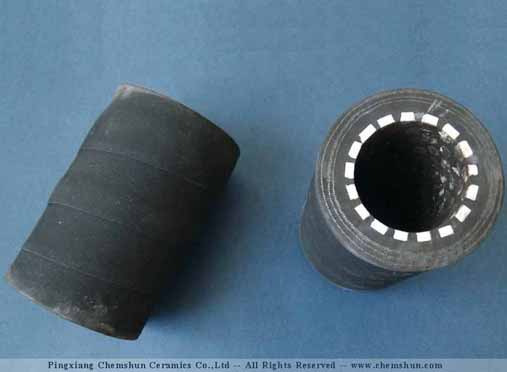

    Chemshun ceramic rubber hose


    Size provided by Chemshun :

      Diameter

    Diameter Internal

    Diameter external

    Resistance

    to bending

    Length

    Pressure

        1”

    25

    42

    300

    10

    10 Kg/cm2

       1-1/4”

    32

    50

    380

    10

    10 Kg/cm2

       1-1/2”

    38

    56

    480

    20

    10 Kg/cm2

        2”

    50

    72

    600

    20

    10 Kg/cm2

       2-1/2”

    65

    94

    780

    20

    10 Kg/cm2

         3”

    75

    105

    900

    20

    10 Kg/cm2

       3-1/2”

    90

    120

    1060

    20

    10 Kg/cm2

        4”

    100

    140

    1200

    20

    10 Kg/cm2

        5”

    125

    160

    1500

    20

    10 Kg/cm2

        6”

    150

    190

    1800

    20

    10 Kg/cm2

        8”

    200

    235

    2400

    10

    10 Kg/cm2

        10”

    250

    290

    3000

    10

    10 Kg/cm2

        12”

    300

    350

    3600

    10

    10 Kg/cm2


    Product Technical Data (1:wear resistant ceramic)
