Product Name：Al2O3 15~22% Inert Ceramic Balls
- Product Category：
- Product Details：
Chemshun Inert alumina ceramic balls are to increase the distribution spots of gas or liquid - E-Mail:
-

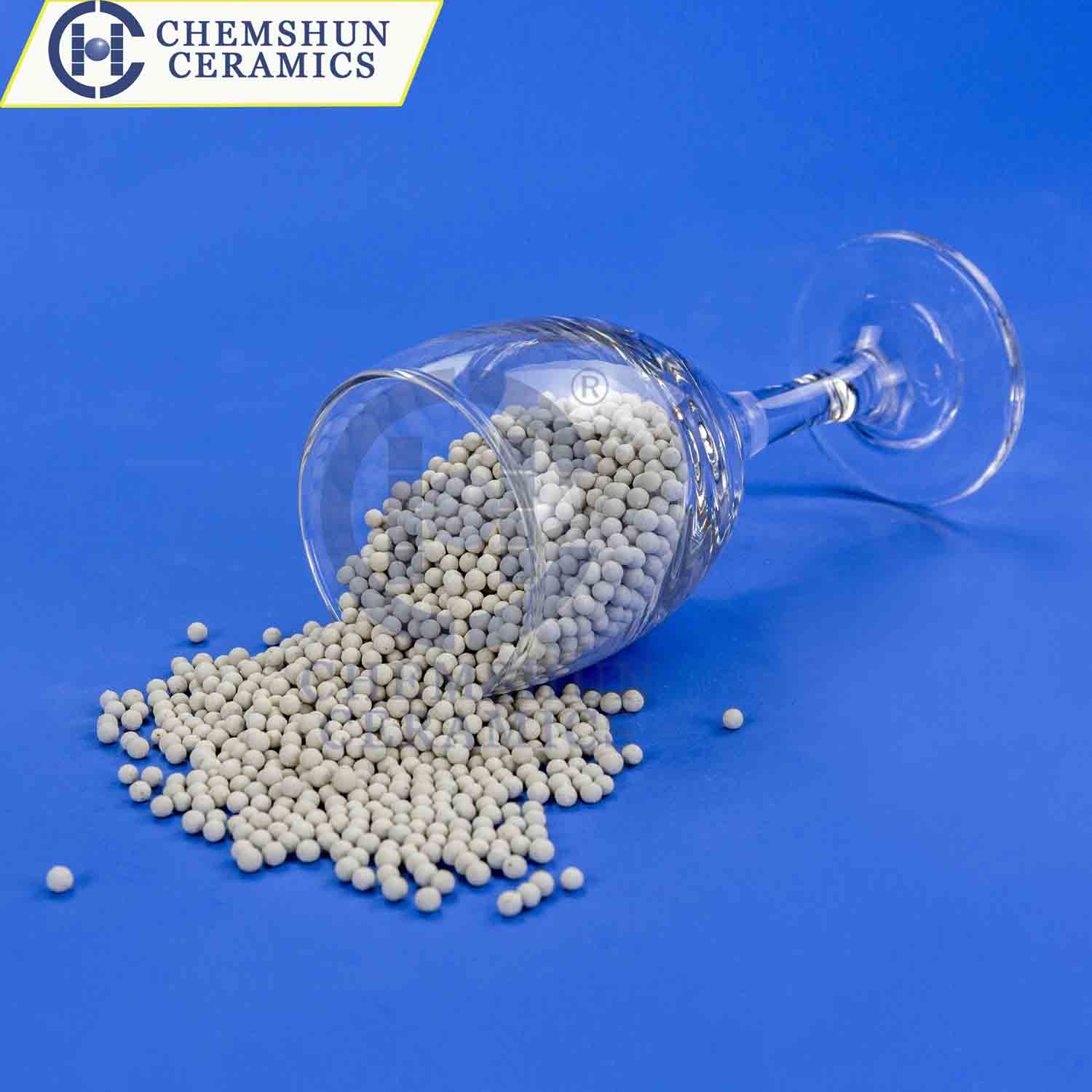

Al2O3 15~22% Inert Ceramic Balls
Chemshun Ceramics offer Al2O3 15~22% ceramic balls as catalyst carrier
Chemshun inert ceramic balls are to increase the distribution spots of gas or liquid , widely utilized as the covering or supporting materials of the catalyst in the reactors and the packing in the column in such varies areas as petroleum , chemical industry , chemical fertilizer, natural gas and support or protect the active catalyst , which especially have the comparatively lower mechanical strength
Chemical Composition:
Al2O3 | SiO2 | Al2O3+ SiO2 | MgO | K2O+Na2O | CaO | TiO2 | Leachable Fe2O3 |
15-22% | <80% | >95% | <2.5% | <4% | <1.5% | <0.5 | <0.1% |
Physical properties:
Items | Proportion | Items | Proportion |
Bulk gravity (g/cm3) | 2.2-2.4 | Water Absorption (%) | <0.9 |
Ignition loss (%) | =<0.3% | Moh’s hardness (scale) | >=6.5 |
Heat resistance (℃) | Up to 980 | Alkali Resistance(%) | >80 |
Acid Resistance(%) | >98 | Roundness(Max.Dia/Mix.Dia) | <1.25 |
Geometric properties:
Diameter | Diameter range (mm) | Crushing strength (kg/particle) | Bulk weight (kg/m3) |
1/4” | 5~8 | >55 | 1455 |
Product Technical Data （3：catalyst carrier series)
Chemshun Ceramics also recommends these other Catalyst Carrier:
Al2O3 15~22% Inert Ceramic Balls
7x7x4mm ceramic ring as benzene anhydride catalyst carrier
