Silicon carbide cyclone liner - Silicon carbide manufacturers

SIC Cyclone

Reaction sintered sicsilicon carbide liner is widely used in mining, ore crushing, screening and high wear and corrosion fluid material conveying. Silicon carbide steel shell lined with products, due to its good abrasion resistance and corrosion resistance, is suitable for conveying powder, slurry, widely used in mining, mineral processing and power plants and other industries.

Chemshun Ceramics- Silicon carbide cyclone liner as wear resistant linings

The silicon carbide cyclone have many properties:

1. High temperature tolerance.

2. Corrosion resistance.

3. Oxidation resistance.

4. Wear resistance.

5. The life span is much longer than other material.

6. High flexing strength at elevated temperatures.

7. High thermal shock resistance.

8. High temperature tolerance.

9. High thermal conductivity.

10. High resistivity against alkalis.

Shapes:

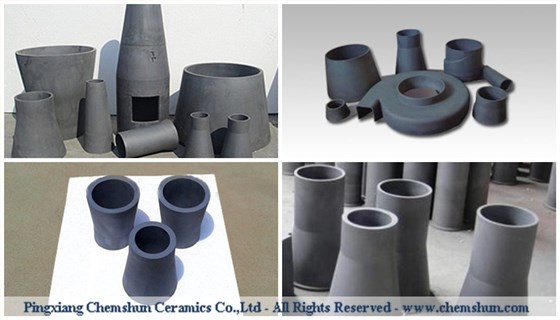

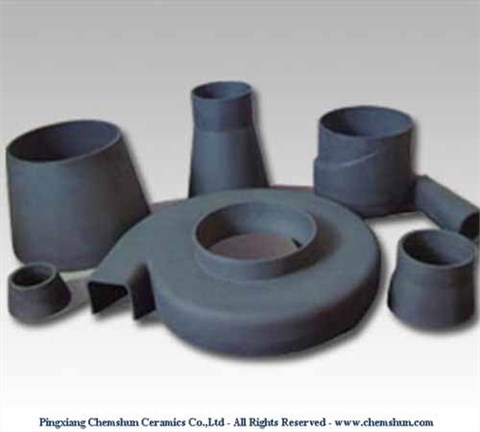

SiC materials. - Alpha silicon carbide from silicon carbide supplier can be cast into Volutes, Inlets, Feed Boxed, Cones, Spigots, Apexes, Vortex Finders, Elbows, Tailings, Square to Round and other common cyclonic shapes.

High precision can be achieved in manufacturing shapes, formed by pressing or casting, then sintered in a reactor kiln. Wall thickness from 2 mm for the shaped components is another advantage of using wear protection linings.

Application:

Cyclone linings eliminate complex, time intensive brick or tiled constructions. Drop in thin-walled ceramic liners can be installed in hydrocyclones, desanders, classifiers, cyclones separators, dust collectors and other sliding abrasion applications.

Application temperature: up to 1380°C/2212°F depending on application and geometry.

Installation:

Individual shapes and components laid in mortar, epoxy, or temperature and acid resistant based mastics. Mechanical attachment is also possible.

Technical data of SiSiC and SSiC products:

Technical Data Sheet :

Properties	Units	RSiC	SiSiC	SSiC
Bulk denstity SiC	Vo1%	≥99	≥85	≥99
Bulk density	g/cm³	2.60～2.72	3.01	3.10-3.15
Apparent porosity	%	15	＜0.1	＜0.2
Modulus of rupture at 20℃	Mpa	80～90	250	400
Modulus of rupture at 1200℃	Mpa	90～100	280	650
Modulus of elasticity at 20℃	Gpa	-	330	410
Thermal Conductivity at 1200℃	w.m^-1.k^-1	35.0	45	55
Thermal expansion at 1200℃	a×10^-6/℃	4.60	4.5	4.0
Thermal shock resistance at 1200℃		Very good	Very good	Very good
Max.working temperature	℃	1650(oxid)	1350	1600

Service:

Any requirment about chemshun Alumina Ceramic Square Mosaic Tile, silicon carbideliner, Wear Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service. web:www.chemshun.com . Tel:86-799-6790781

Export:

Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
