Product Name:Hexagonal Alumina Tile

  • Product Category:
    • Product Details:
      Alumina Hexagonal Tile widely used for hot vulcanized rubber ceramic component liner and pulley laggings ceramics,pipe hose.
    • E-Mail:

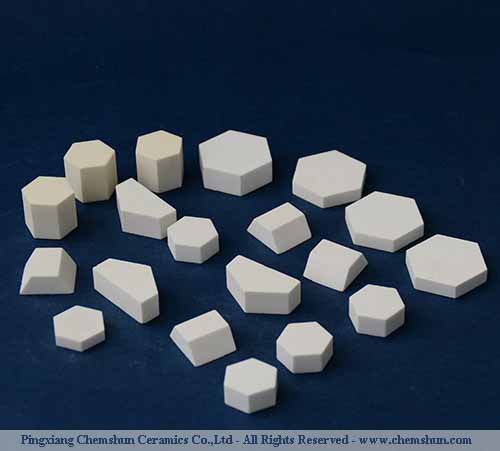

    Hexagonal Alumina Tile

    Hexagonal Alumina tile widely used for hot vulcanized rubber ceramic component liner and pulley laggings ceramics.


    Chemshun hexagonal alumina tile is used as lining with the advantage of wear-resisting, impact-resisting, easy operation, etc., is ideal surface wear-resisting material of material transfer equipment in iron & steel works, thermal & power plants, mine, etc. Wear-resistant lining Trades and can extend the operating life of equipment effectively. It is widely used as a tile mat lining in conveying engineering to protect the belts in the mining industry and agriculture, etc.


    Raw Material:
    The alumina wear resistance ceramic and wear ceramic liners products are made from the high purity, super fine and single narrow particle high-quality grain alumina powder, which is spray-dried processing, formed by cold isostatic pressing, firing on 1520 º C~1650 º C temperature. Subject to Al2O3 content difference, we have 92% or 95% alumina ceramics.


    Advantage of the material:

    1) High hardness: Its Rockwell hardness is HRA80-90 and the Moh's hardness is up to 9 grade with is only less than diamond. And its abrasion-resistant is better than steel and stainless steel;

    2) Superior Abrasion-resistance: Its abrasion-resistance is 171.5 times of Chrome steel and 260 times of manganese steel materials and as per our customers' feedback, it could prolong the use life of equipment for more than 10years under same working conditions.

    3) Light weight. Its density is 3.6-3.75g/cm3, it is only half the weight of steel and could reduce the load on equipment.

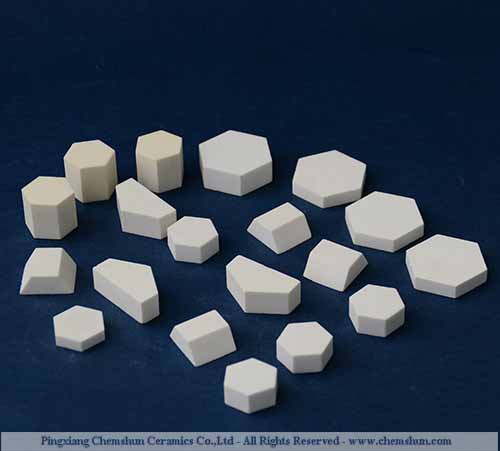

    Alumina Ceramic Hexagonal Tile

    Product Technical Data (1:wear resistant ceramic)

    Product PDF Brochure Download
