Product Name:SIC Cyclone

  • Product Category:
    • Product Details:
      Reaction sintered silicon carbide liner is widely used in mining, ore crushing, screening and high wear and corrosion fluid material conveying.
    • E-Mail:

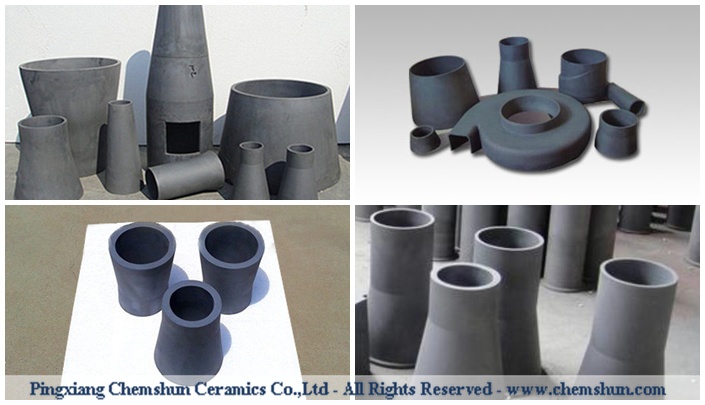

    SIC Cyclone

    Reaction sintered silicon carbide liner is widely used in mining, ore crushing, screening and high wear and corrosion fluid material conveying. Silicon carbide steel shell lined with products, due to its good abrasion resistance and corrosion resistance, is suitable for conveying powder, slurry, widely used in mining, mineral processing and power plants and other industries.

    Chemshun Ceramics- Silicon carbide cyclone liner as wear resistant linings

    The silicon carbide cyclone have many properties:

    1. High temperature tolerance.

    2. Corrosion resistance.

    3. Oxidation resistance.

    4. Wear resistance.

    5. The life span is much longer than other material.

    6. High flexing strength at elevated temperatures.

    7. High thermal shock resistance.

    8. High temperature tolerance.

    9. High thermal conductivity.

    10. High resistivity against alkalis.

    Shapes:

    Materials can be cast into Volutes, Inlets, Feed Boxed, Cones, Spigots, Apexes, Vortex Finders, Elbows, Tailings, Square to Round and other common cyclonic shapes.

    High precision can be achieved in manufacturing shapes, formed by pressing or casting, then sintered in a reactor kiln. Wall thickness from 2 mm for the shaped components is another advantage of using wear protection linings.

    Application:

    Cyclone linings eliminate complex, time intensive brick or tiled constructions. Drop in thin-walled ceramic liners can be installed in hydrocyclones, desanders, classifiers, cyclones separators, dust collectors and other sliding abrasion applications.

    Application temperature: up to 1380°C/2212°F depending on application and geometry.

    Installation:

    Individual shapes and components laid in mortar, epoxy, or temperature and acid resistant based mastics. Mechanical attachment is also possible.

    Technical data of SiSiC and SSiC products:


    Technical Data Sheet :

    Properties

    Units

    RSiC

    SiSiC

    SSiC

    Bulk denstity     SiC


    Vo1%

    ≥99

    ≥85

    ≥99



    Bulk density

    g/cm3

    2.602.72

    3.01

    3.10-3.15

    Apparent porosity

    %

    15

    0.1

    0.2

    Modulus of rupture at 20℃

    Mpa

    8090

    250

    400

    Modulus of rupture at 1200℃

    Mpa

    90100

    280

    650

    Modulus of elasticity at 20℃

    Gpa

    -

    330

    410

    Thermal Conductivity at 1200℃

    w.m-1.k-1

    35.0

    45

    55

    Thermal expansion  at 1200℃

    a×10-6/℃

    4.60

    4.5

    4.0

    Thermal shock resistance at 1200℃


    Very good

    Very good

    Very good

    Max.working temperature

    1650(oxid)

    1350

    1600



    Service:

    Any requirment about chemshun Alumina Ceramic Square Mosaic Tile, silicon carbide liner, Wear Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service. web:www.chemshun.com . Tel:86-799-6790781


    Export:

    Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
